| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

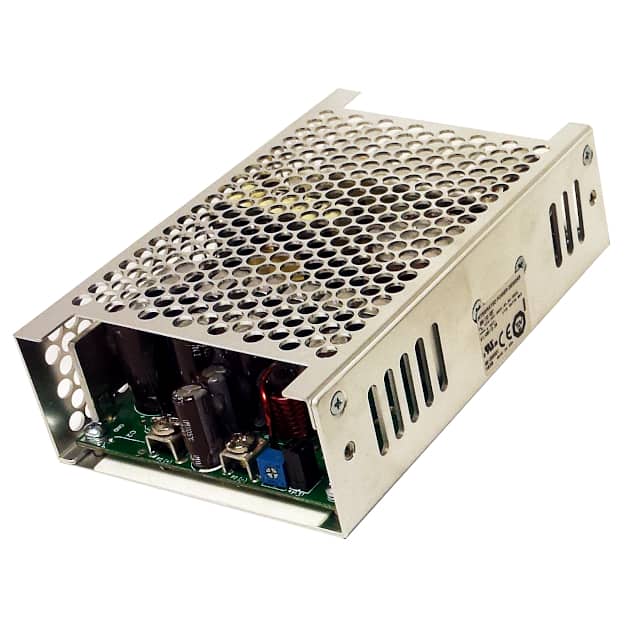

The Integrated Power Designs 1011413CHCO is an enclosed AC/DC converter designed for commercial and medical applications. It provides a single 24VDC output with a power capacity of 110W and a maximum current of 4.6A.
This converter operates with a universal input voltage range of 85 to 264 VAC, offering flexibility for various power systems. Key features include adjustable output, remote sense capabilities, and an efficiency rating of 87%.
The unit is chassis mountable and operates within a temperature range of 0°C to 70°C with derating. It meets safety standards including 60601-1 and 62368-1, indicated by its CE, cURus, TUV, and UKCA agency approvals.
With dimensions of 133.4mm x 82.6mm x 38.1mm, the GRN-110 series converter is suitable for integration into various electronic systems requiring reliable power conversion.
The output voltage is 24VDC.
The power rating is 110W.
The input voltage range is 85 to 264 VAC.
Key features include adjustable output, remote sense, and universal input.
The dimensions are 133.4mm x 82.6mm x 38.1mm.
The operating temperature range is 0°C to 70°C with derating.
It complies with standards 60601-1 and 62368-1.
