| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

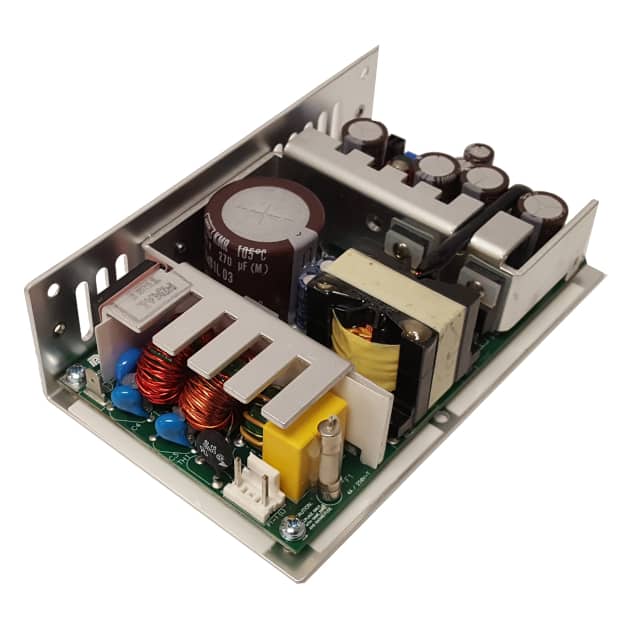

This AC/DC converter from Integrated Power Designs, part number 1011410CH, offers a power output of 110W. It is designed for chassis mounting and accepts a wide input voltage range of 85 to 264 VAC, making it suitable for universal applications.
The converter features adjustable output, remote sense, and a universal input. Its efficiency is rated at 86%. Key applications include ITE (Commercial) and Medical equipment. The operating temperature range is 0°C to 70°C with derating.
Compliance is indicated by CE, cURus, TUV, and UKCA approvals, with standard numbers 60601-1 and 62368-1. The unit has a single output and measures 133.4mm in length, 82.6mm in width, and 38.1mm in height.
RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is REACH Unaffected. These compliance details are based on available data and may require verification.
The 1011410CH provides a single output of 5V at 22A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
It complies with 60601-1 and 62368-1 safety standards.
The efficiency is 86%.
The dimensions are 133.4mm x 82.6mm x 38.1mm.
