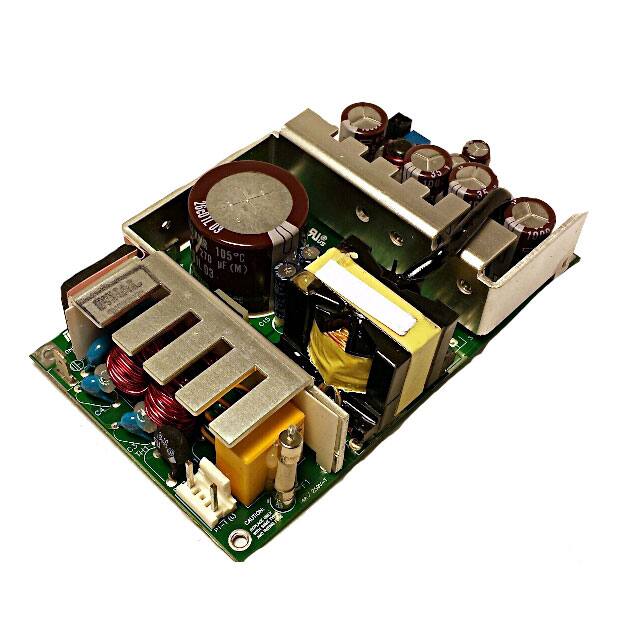

The Integrated Power Designs 1011409 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a power output of 110W with a universal input voltage range of 85 to 264 VAC and a current rating of 2.3A.
Key features include adjustable output, remote sense, and automatic overload protection. The converter operates within a temperature range of 0°C to 70°C with derating and has an efficiency of 82%. Its dimensions are 127.0mm x 76.2mm x 26.9mm.
This model is certified by CE, cURus, TUV, and UKCA, and complies with standard numbers 60601-1 and 62368-1. It is suitable for chassis mounting and offers a single output.
The product is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected. The part number is 1011409 and it is also identified by the distributor part number 2625-1011409-ND.
The input voltage range is 85 to 264 VAC.
The output voltage is 3.3V.
0°C to 70°C with derating.
Chassis mount.
It complies with 60601-1 (medical) and 62368-1 (ITE) standards.
The efficiency is 82%.
CE, cURus, TUV, UKCA.
