| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

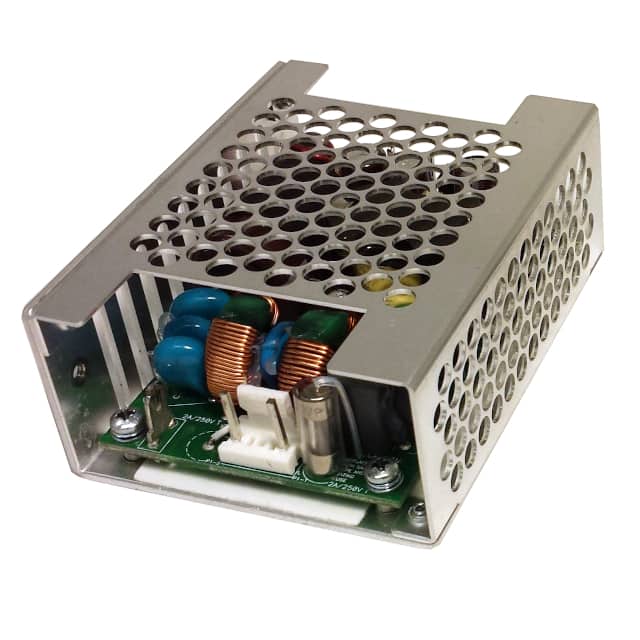

The Integrated Power Designs 1011402CHCO is an enclosed AC/DC power supply designed for ITE (Commercial) and Medical applications. It offers a power output of 45W with a universal input voltage range from 85 to 264 VAC.
Key electrical specifications include a 9A output current and an efficiency of 85%. This converter supports adjustable output, remote sense, and universal input features. It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C, with derating at higher temperatures.
Compliance is indicated by CE, cURus, TUV, and UKCA approvals, along with adherence to standards like 60601-1 and 62368-1. The unit has a single output and is RoHS3 compliant.
The power output is 45W.
The input voltage range is 85 to 264 VAC.
The output current is 9 A.
It is chassis mountable and suitable for ITE (Commercial) and Medical applications.
The operating temperature range is 0°C to 70°C (With Derating).
It is approved by CE, cURus, TUV, and UKCA.
It complies with standards 60601-1 and 62368-1.
