| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

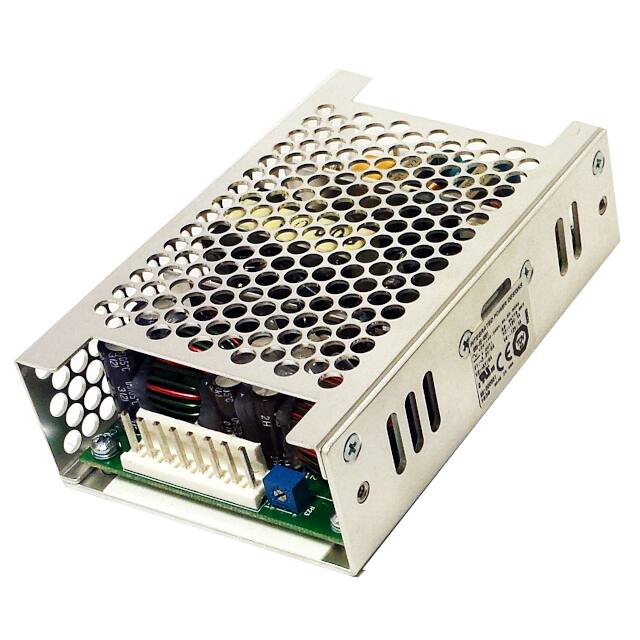

This AC/DC converter from Integrated Power Designs, part number 1011397CHCO, is an enclosed unit designed for chassis mounting. It provides a 24V output voltage and a maximum power of 49W, with an efficiency of 85%.
Key features include adjustable output and universal input capabilities, making it versatile for various power supply needs. The converter is suitable for applications in ITE (Commercial) and Medical sectors. It operates within a temperature range of 0°C to 70°C with derating.
The dimensions of the unit are 114.3mm in length, 69.9mm in width, and 32.5mm in height. It has two outputs and meets standards such as 60601-1 and 62368-1, with approvals from CE, cURus, TUV, and UKCA.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status.
The 1011397CHCO has dual outputs: 5V and 24V.
The output current is 1A per output.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount mounting.
The dimensions are 114.3mm length, 69.9mm width, and 32.5mm height.
It achieves 85% efficiency.
It complies with 60601-1 and 62368-1 standards.
