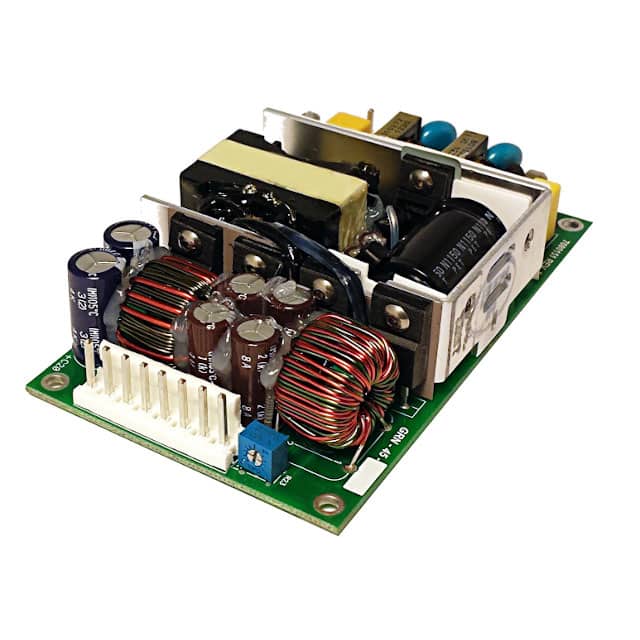

The Integrated Power Designs 1011393CH is an AC/DC converter with a power rating of 45W. It provides multiple output voltages, including 5V, 24V, and +/-12V, making it versatile for various applications. The converter features a universal input voltage range of 85 ~ 264 VAC and an efficiency of 85%.
Designed for flexibility, this unit includes adjustable output capabilities and a universal input. Its open frame construction and chassis mount type facilitate integration into systems. The dimensions are 108.0mm x 63.5mm x 21.1mm.
This AC/DC converter is suitable for ITE (Commercial) and Medical applications. It meets safety standards including 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA.
Key specifications include four outputs with current ratings of 5A for the first output and 1A for the remaining three. The operating temperature range is 0°C to 70°C with derating.
The Integrated Power Designs 1011393CH offers output voltages of 5V, 24V, 12V, and -12V.
The input voltage range is 85 ~ 264 VAC.
The power rating is 45W.
The operating temperature range is 0°C to 70°C with derating.
Approval agencies include CE, cURus, TUV, and UKCA.
It is suitable for ITE (Commercial) and Medical applications.
