Mfr Part #:

1011385CH

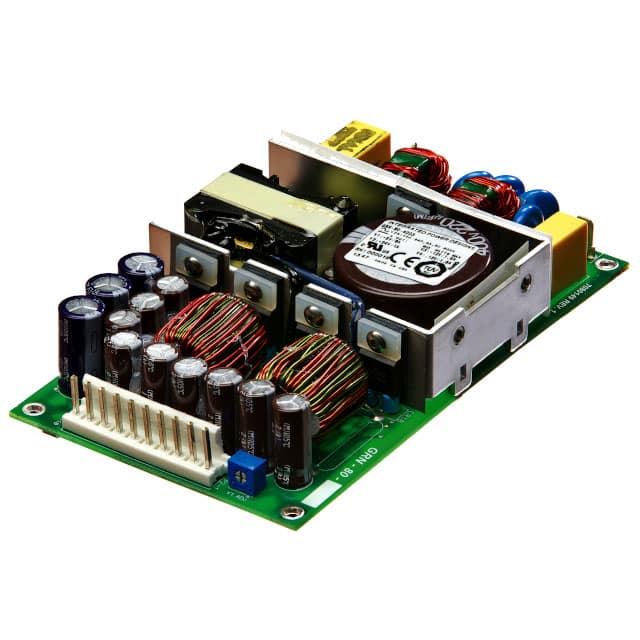

The Integrated Power Designs 1011385 is an 80W AC/DC converter featuring 5V, +/-12V outputs and 88% efficiency. It is designed for ITE (Commercial) and Medical applications.

Stock on Request

1011385CH Description

Short technical summary and product information.

The Integrated Power Designs 1011385 is an 80W AC/DC converter with a universal input voltage range of 85-264 VAC. It provides three output voltages: 5V, 12V, and -12V, with corresponding currents of 8A, 2A, and 2A respectively.

This open-frame converter operates with an efficiency of 88% and features adjustable output, remote sense, and universal input capabilities. Its dimensions are 127.0mm x 76.2mm x 25.4mm, and it is designed for chassis mounting.

The GRN-80 series converter is approved by CE, cURus, TUV, and UKCA, making it suitable for ITE (Commercial) and Medical applications. It operates within a temperature range of 0°C to 70°C with derating.

Compliance includes RoHS3, REACH Unaffected, and MSL 1 Unlimited. The standard numbers it meets are 60601-1 and 62368-1.

1011385CH Quick Information

Product Type: AC DC Converter

Series: GRN-80

Canonical Name: Integrated Power Designs 1011385 AC/DC Converter

Subcategory: AC DC Converter

1011385CH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1011385CH Features

80W AC/DC converter with universal input.
Provides 5V, 12V, and -12V outputs.
High efficiency of 88% at full load.
Suitable for ITE and Medical applications.
Chassis mount open-frame design.

1011385CH Applications

Ideal for commercial electronic devices.
Suitable for medical equipment integration.
Used in systems requiring multiple voltage rails.
Designed for reliable power conversion.

1011385CH FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

85 to 264 VAC.

What output voltages and currents does it provide?

5V at 8A, 12V at 2A, and -12V at 2A.

What is the operating temperature range?

0°C to 70°C with derating.

What is the efficiency of this converter?

88%.

What safety standards does it comply with?

60601-1 (medical) and 62368-1 (ITE).

What approvals does it have?

CE, cURus, TUV, UKCA.

What is the mounting type and package?

Chassis mount, packaged in a box.

Category	AC DC Converters
Manufacturer Name	Integrated Power Designs
Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus, TUV, UKCA
Current	2 A
Duration	127.0mm x 76.2mm x 25.4mm (5.00" L x 3.00" W x 1.00" H)
Efficiency	88%
Failure Rate	GRN-80 (80W)
Features	Adjustable Output, Remote Sense, Universal Input
Height	32.5mm (1.28")
Industrial Grade	No
Length	133.4mm (5.25")
Medical Grade	Yes
Military Grade	No
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature	0°C ~ 70°C (With Derating)
Power (Watts)	80W
Standard Number	60601-1; 62368-1
Type	Open Frame
Voltage	-12V
Width	82.6mm (3.25")
