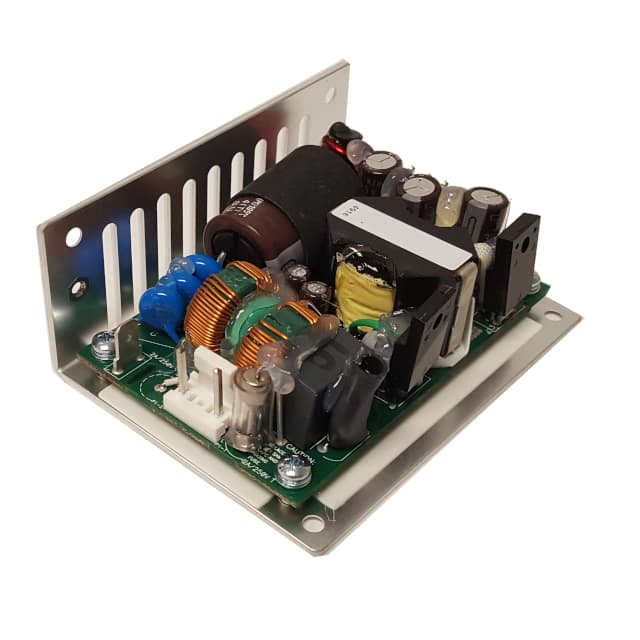

The Integrated Power Designs 1011360CH is an AC/DC converter designed for commercial ITE and medical applications. It provides a single 19V output with a maximum current of 3.1A, delivering up to 60W of power.
This converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 87%. Key features include adjustable output and remote sense functionality, making it versatile for various system designs. The unit is housed in a chassis mountable enclosure with dimensions of 81.3mm x 61.7mm x 32.5mm.
Compliance is certified by CE, cURus, TUV, and UKCA agencies, adhering to standards such as 60601-1 and 62368-1. The operating temperature range is from 0°C to 70°C with derating. This model is suitable for applications requiring a reliable and efficient power conversion solution.
The output voltage is 19V.
The maximum output current is 3.1A.
The power rating is 60W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
Key features include adjustable output, remote sense, and universal input.
It complies with standards 60601-1 and 62368-1.
