| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

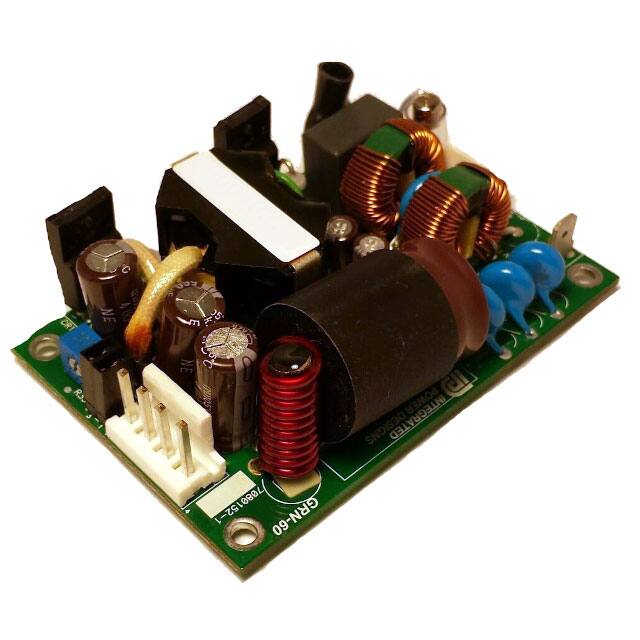

This Integrated Power Designs 1011335CH is an AC/DC converter with a power rating of 60W and a single 24V output. It operates with a universal input voltage range of 85 to 264 VAC and achieves an efficiency of 87%.
The converter is designed for chassis mounting and features adjustable output, remote sense, and universal input capabilities. It is suitable for applications in ITE (Commercial) and Medical sectors.
Key specifications include a 2.5A output current and an operating temperature range of 0°C to 70°C with derating. The unit meets standard numbers 60601-1 and 62368-1, with approvals from CE, cURus, TUV, and UKCA agencies.
The output voltage is 24V.
The power rating is 60W.
The input voltage range is 85 to 264 VAC.
The efficiency is 87%.
Applications include ITE (Commercial) and Medical.
The operating temperature range is 0°C to 70°C (With Derating).
The dimensions are 81.3mm x 61.7mm x 32.5mm.
