| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

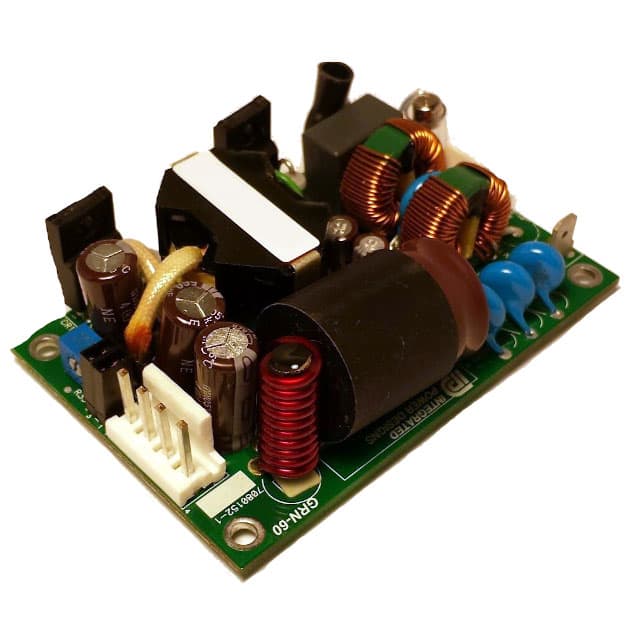

The Integrated Power Designs 1011332 is an open frame AC DC converter designed for ITE (Commercial) and Medical applications. It provides a 60W output power with a single output.
Key electrical specifications include an input voltage range of 85 to 264 VAC and an output current of 9A. The converter boasts an efficiency of 85% and features such as adjustable output, remote sense, and universal input.
Mechanically, the unit is designed for chassis mounting and has dimensions of 76.2mm x 50.8mm x 21.1mm. The operating temperature range is 0°C to 70°C with derating. It complies with safety standards including 60601-1 and 62368-1 and carries CE, cURus, TUV, and UKCA approvals.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1 (Unlimited).
85 to 264 VAC.
0°C to 70°C with derating.
Open frame chassis mount with packaging in a box.
76.2mm x 50.8mm x 21.1mm (3.00" x 2.00" x 0.83").
CE, cURus, TUV, UKCA. Standards: 60601-1, 62368-1.
9A at 5V, 60W total.
ITE (commercial) and medical equipment.
