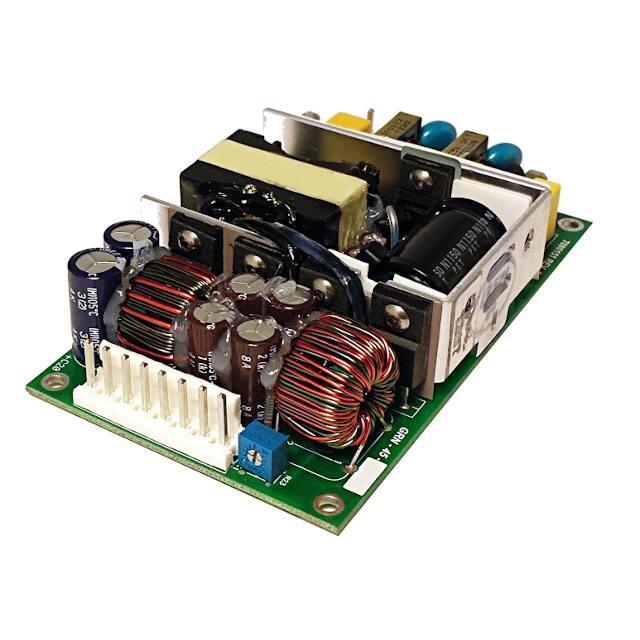

The Integrated Power Designs 1011266 is a 45W AC/DC converter with three outputs: 5V and ±15V. It features an open frame chassis mount design, making it suitable for integration into various systems. The converter has an efficiency of 85% and offers adjustable output and universal input capabilities.
This converter is approved for both ITE (Commercial) and Medical applications, meeting standards 60601-1 and 62368-1. It carries certifications from CE, cURus, TUV, and UKCA. The operating temperature range is 0°C to 70°C with derating.
Mechanically, the converter measures 108.0mm x 63.5mm x 21.1mm (4.25" x 2.50" x 0.83") and is chassis mountable. The unit provides 1A output current and operates from a universal AC input.
The converter provides three outputs: 5V and ±15V.
45W.
85%.
0°C to 70°C with derating.
CE, cURus, TUV, UKCA. Standards 60601-1 (Medical) and 62368-1 (ITE).
Chassis mount, open frame.
108.0mm x 63.5mm x 21.1mm (4.25" x 2.50" x 0.83").
