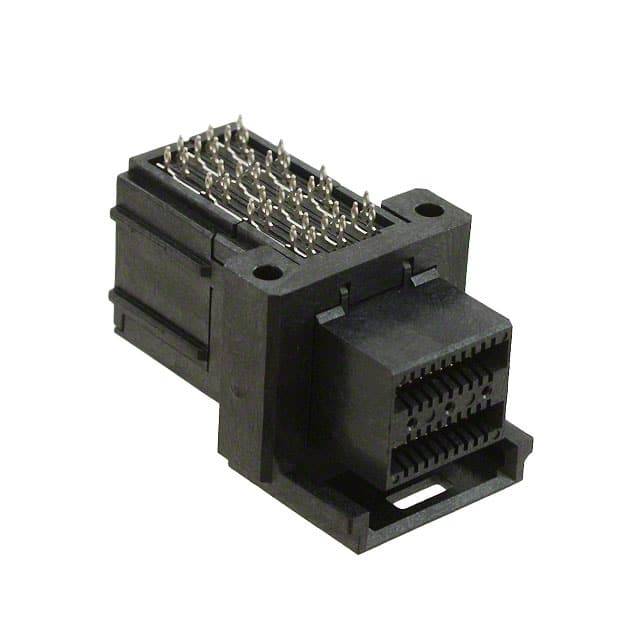

10112632-101LF Amphenol ICC 10112632-101LF is a Mini HD SAS receptacle with cage featuring 16 positions, right angle through hole mounting, press-fit termination, and gold contact finish.
Mfr Part #:

10112632-101LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 10112632-101LF is a Mini HD SAS receptacle with cage featuring 16 positions, right angle through hole mounting, press-fit termination, and gold contact finish.
✓ Total Stock: 9,391 pcs
$ Price Range: $2.35

10112632-101LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
9,391 pcs
On Request
9391 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

10112632-101LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Lead Style
Mounting Type
Number of Positions
Tape & Reel
Termination
Termination Style
View Similar Products (0)

10112632-101LF Description

Short technical summary and product information.

The Amphenol ICC 10112632-101LF is a Mini HD SAS receptacle with integrated cage, designed for high-speed serial attached SCSI (SAS) applications. This connector assembly offers 16 positions in a right-angle orientation, enabling space-efficient board layouts.



Termination is via press-fit, providing a reliable solderless connection to the printed circuit board. The contacts are finished with 30.0µin (0.76µm) of gold, ensuring excellent conductivity and corrosion resistance over repeated mating cycles.



A latch lock feature secures the mating plug, preventing accidental disconnection in vibration-prone environments. The through hole, right angle mounting style is well-suited for mezzanine or edge-card configurations where vertical space is limited.

10112632-101LF Quick Information

Product Type: Pluggable Connector Assembly
Canonical Name: Amphenol ICC 10112632-101LF Mini HD SAS Receptacle with Cage, 16 Position, Right Angle, Press-Fit
Subcategory: SAS, Mini HD

10112632-101LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

10112632-101LF Estimated Pricing

Qty Low High
1+ $2.35 $2.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

10112632-101LF Features

  • 16-position Mini HD SAS receptacle with cage.
  • Right angle through hole mounting orientation.
  • Press-fit termination for solderless assembly.
  • Gold contact finish (30.0µin) for reliability.
  • Latch lock feature secures mating plug.

10112632-101LF Applications

  • High-speed SAS storage interface connections.
  • Server and data center backplane interconnects.
  • Enterprise storage array internal cabling.
  • Compact mezzanine card edge connectors.

10112632-101LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 10112632-101LF have?

The connector has 16 positions.

What is the connector style of this part?

It is a receptacle with cage.

What type of connector is the 10112632-101LF?

It is a SAS, Mini HD connector.

What mounting type does this connector use?

Through hole, right angle mounting.

What termination style is used?

Press-fit termination.

What is the contact finish and thickness?

Gold finish, 30.0µin (0.76µm) thick.

Does this connector have a locking feature?

Yes, it includes a latch lock.
