| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

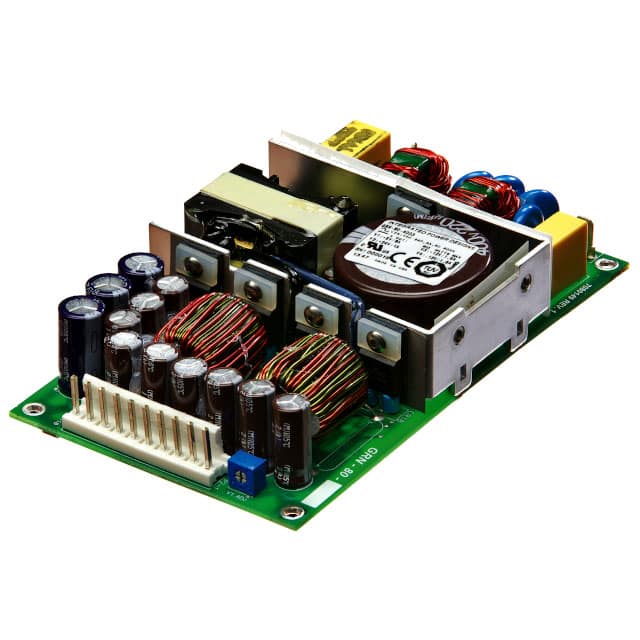

This AC/DC converter from Integrated Power Designs, part number 1011251, is designed for high-performance applications. It delivers 80W of power with an efficiency of 88% and features an open frame construction suitable for chassis mounting.
The converter provides multiple output voltages including -12V, and supports features like adjustable output, remote sense, and universal input. Its dimensions are 127.0mm x 76.2mm x 25.4mm. The operating temperature range is 0°C to 70°C with derating.
Designed for ITE (Commercial) and Medical applications, this unit meets standards such as 60601-1 and 62368-1. It is approved by CE, cURus, TUV, and UKCA agencies, ensuring compliance and reliability for various industrial and healthcare systems.
The 1011251 provides four outputs: 3.3V, 5V, +12V, and -12V.
The operating temperature range is 0°C to 70°C with derating.
The typical efficiency is 88%.
It is approved to CE, cURus, TUV, and UKCA standards.
The mounting type is chassis mount.
Dimensions are 127.0mm x 76.2mm x 25.4mm (5.00" x 3.00" x 1.00").
Yes, it complies with medical safety standard 60601-1.
