Mfr Part #:

1011247CH

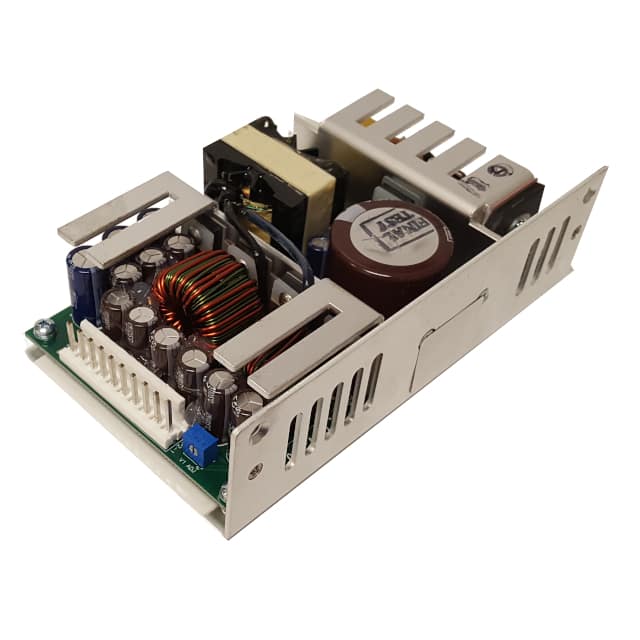

The Integrated Power Designs 1011247CH is a 110W AC/DC converter with a 24V output. It features a chassis mount design and universal input.

Stock on Request

1011247CH Description

Short technical summary and product information.

This AC/DC converter from Integrated Power Designs, part number 1011247CH, offers a power output of 110W and a nominal voltage of 24V. It is designed for chassis mounting and features a universal input, adjustable output, and remote sense capabilities.

The converter operates with an efficiency of 85% and has a wide operating temperature range of 0°C to 70°C with derating. It is suitable for applications in ITE (Commercial) and Medical fields, adhering to standards such as 60601-1 and 62368-1.

With dimensions of 133.4mm x 82.6mm x 38.1mm, this converter provides a robust solution for power conversion needs. It has two outputs and is RoHS3 compliant.

1011247CH Quick Information

Product Type: AC DC Converter

Canonical Name: Integrated Power Designs 1011247CH AC/DC Converter

Subcategory: AC DC Converters

1011247CH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1011247CH Features

110W AC/DC converter with 24V output.
Chassis mount type for easy integration.
Universal input and adjustable output features.
Suitable for ITE and Medical applications.
RoHS3 compliant for environmental considerations.

1011247CH Applications

Ideal for commercial ITE equipment.
Suitable for medical device power.
Used in systems requiring stable 24V output.
Designed for robust power conversion.

1011247CH FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range?

0°C to 70°C with derating.

What are the output voltages?

The converter provides dual outputs: 5V and 24V. The 24V output is rated at 3A.

What is the output current on the 24V output?

3A.

What is the power rating?

110W.

What is the efficiency rating?

85%.

What approvals does the converter have?

CE, cURus, TUV, UKCA.

How many outputs does it have?

Two outputs: 5V and 24V.

Category	AC DC Converters
Manufacturer Name	Integrated Power Designs
Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus, TUV, UKCA
Current	3 A
Efficiency	85%
Features	Adjustable Output, Remote Sense, Universal Input
Height	38.1mm (1.50")
Industrial Grade	Yes
Length	133.4mm (5.25")
Medical Grade	Yes
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature	0°C ~ 70°C (With Derating)
Power (Watts)	110W
SVHC Present	Not Present
Standard Number	60601-1; 62368-1
Type	Chassis
Voltage	24V
Width	82.6mm (3.25")
