| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

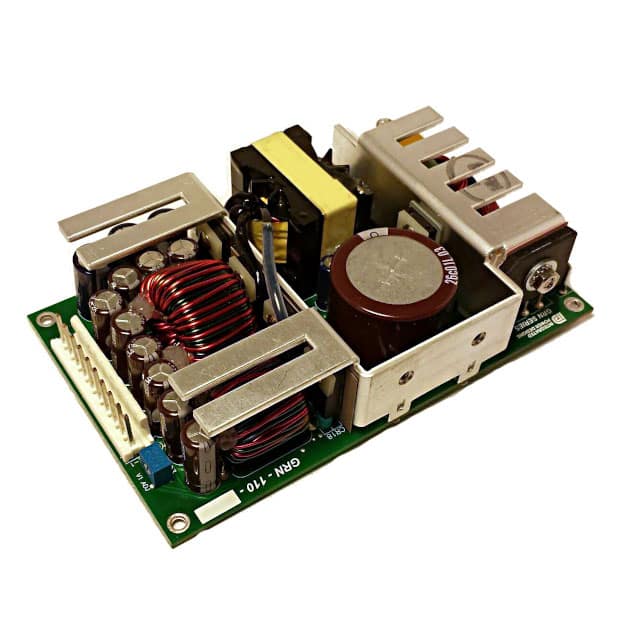

The Integrated Power Designs 1011243 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a total power output of 110W with an efficiency rating of 85%.
This converter offers four output voltages: 5V, 24V, +12V, and -12V. It supports universal input voltage ranging from 85 to 264 VAC. Key features include adjustable output, remote sense, and universal input capability.
The unit is designed for chassis mounting and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 127.0mm x 76.2mm x 26.9mm. The GRN-110 series converter meets standards such as 60601-1 and 62368-1, and carries CE, cURus, TUV, and UKCA agency approvals.
The Integrated Power Designs 1011243 provides output voltages of 5V, 24V, +12V, and -12V.
The 1011243 converter has a total power output of 110W.
The 1011243 accepts a universal input voltage range of 85 to 264 VAC.
The operating temperature range is 0°C to 70°C, with derating.
The 1011243 supports chassis mounting.
Key features include adjustable output, remote sense, and universal input.
The 1011243 meets standards 60601-1 and 62368-1.
