| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

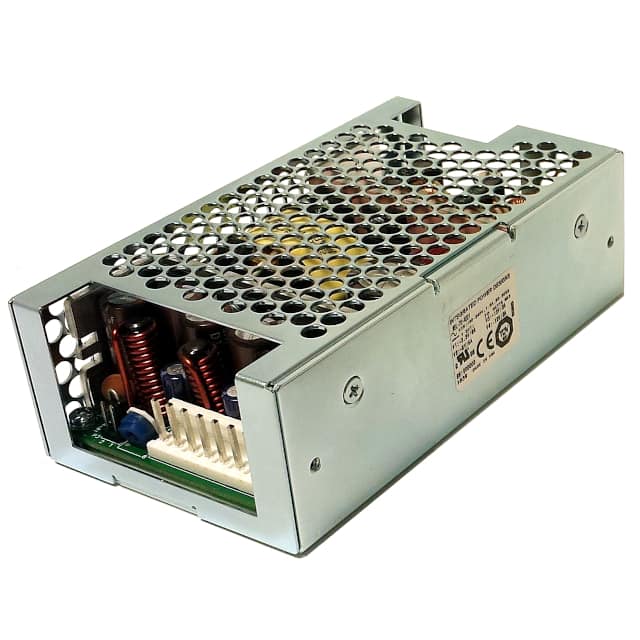

The Integrated Power Designs 1011219 is a versatile AC/DC converter designed for various applications. It delivers a total power of 70W and provides multiple output voltages: 5V, 3.3V, and +/-15V. This converter is suitable for industrial, ITE (Commercial), laboratory, and medical environments.
Key electrical specifications include an input voltage range of 85 to 264 VAC and an efficiency of 78%. The unit features adjustable output and universal input capabilities, making it adaptable to different power sources. Its robust design is supported by approvals from CE, cURus, TUV, and UKCA.
Mechanically, the 1011219 has a compact form factor with dimensions of 114.3mm x 63.5mm x 31.0mm. It is designed for chassis mounting, facilitating easy integration into system builds. The operating temperature range is from 0°C to 70°C with derating, ensuring reliable performance under various conditions.
The input voltage range is 85 to 264 VAC.
The package is a Box, and the mounting type is Chassis Mount.
The operating temperature range is 0°C to 70°C with derating.
The 1011219 provides four outputs: 5V at 6A, 3.3V at 5A, +15V at 2A, and -15V at 2A.
It complies with IEC 60601-1 for medical equipment and IEC 62368-1 for AV/ICT equipment.
The typical efficiency is 78%.
The dimensions are 114.3 mm (length) x 63.5 mm (width) x 31.0 mm (height).
