| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

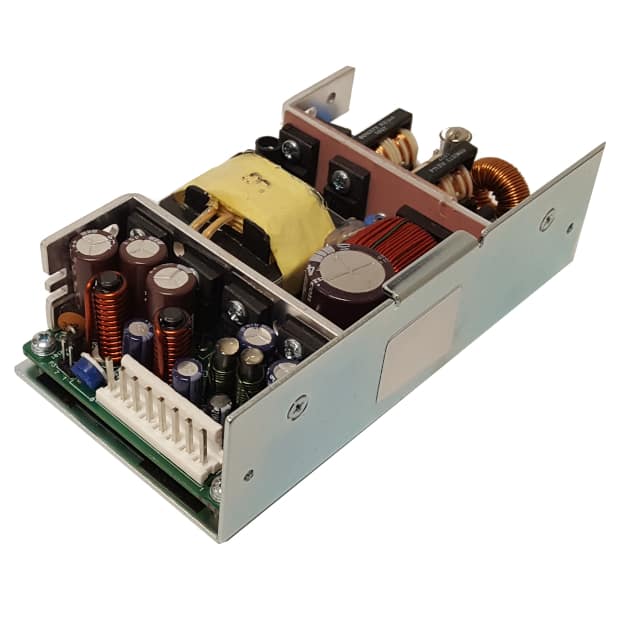

The Integrated Power Designs 1011217 is a 70W AC/DC converter designed for various applications including industrial, ITE (Commercial), laboratory, and medical settings. It features a universal input voltage range of 85-264 VAC, making it suitable for global use.
This converter provides four outputs: 3.3V with 6A, 5V with 5A, and +/-12V with 2A each. It boasts an efficiency of 78% and includes adjustable output features. The operating temperature range is 0°C to 70°C with derating.
With dimensions of 121.6mm x 66.5mm x 37.6mm, the 1011217 is designed for chassis mounting. It meets safety standards including 60601-1 and 62368-1, and holds approvals from CE, cURus, TUV, and UKCA agencies.
The converter provides 3.3V at 6A, 5V at 5A, +12V at 2A, and -12V at 2A.
The universal AC input range is 85-264 VAC.
The device operates from 0°C to 70°C with derating.
It is designed to meet IEC 60601-1 for medical equipment and IEC 62368-1 for IT/audio/video equipment.
The dimensions are 121.6mm x 66.5mm x 37.6mm and it is chassis mount.
Efficiency is rated at 78%.
