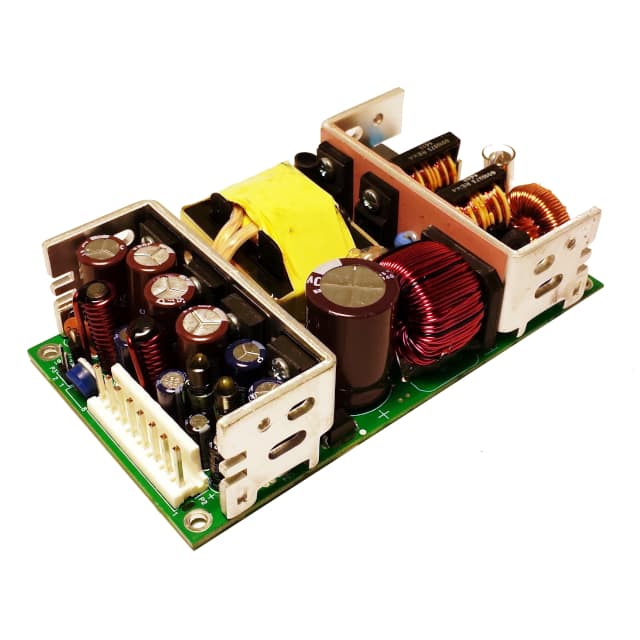

The Integrated Power Designs 1011213 is an AC/DC converter designed for versatile power supply needs. It features an Open Frame construction and a Chassis Mount type, making it suitable for integration into various systems.
This converter delivers a total power of 70W with multiple output voltages: 3.3V at 6A, 7V at 5A, and 12V at 2A. It operates with an efficiency of 78% and accepts a wide input voltage range of 85 to 264 VAC, supporting universal input.
Key features include adjustable output and universal input capabilities. The device is approved by CE, cURus, TUV, and UKCA, indicating compliance with international safety standards. Its dimensions are 114.3mm x 63.5mm x 31.0mm.
The 1011213 is designed for applications in Industrial, ITE (Commercial), Laboratory, and Medical sectors. It operates within a temperature range of 0°C to 70°C with derating.
85 to 264 VAC.
The converter is packaged in a box and is chassis mounted.
0°C to 70°C with derating.
Output 1: 3.3V at 6A, Output 2: 7V at 5A, Output 3: 12V at 2A.
70 watts.
60601-1 and 62368-1.
114.3mm length, 63.5mm width, 31.0mm height.
