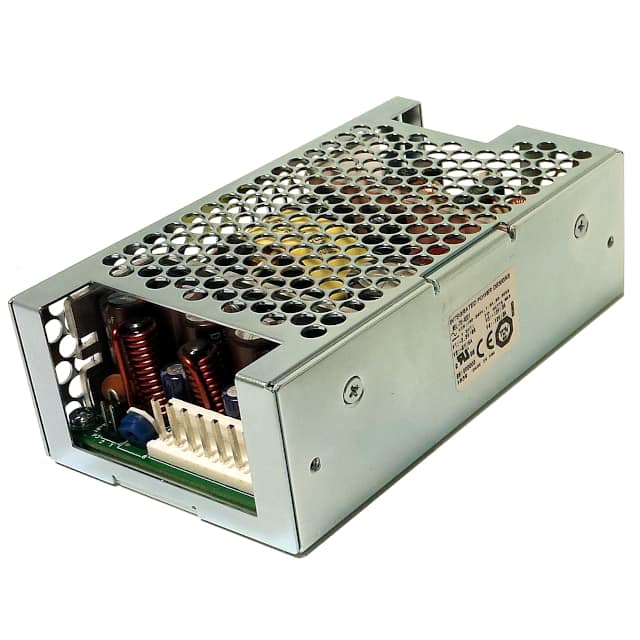

The Integrated Power Designs 1011202CHCO is an enclosed AC/DC converter designed for industrial, ITE, laboratory, and medical applications. It features adjustable output and universal input, accepting a wide voltage range from 85 to 264 VAC.
This converter delivers a stable 5V output at 5A, providing a total power of 70W. Its efficiency is rated at 78%. The operating temperature range is 0°C to 70°C with derating. The unit is chassis mountable and has dimensions of 121.6mm x 66.5mm x 37.6mm.
Compliance certifications include CE, cURus, TUV, and UKCA, with standards such as 60601-1 and 62368-1 met. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
The 1011202CHCO provides an output voltage of 5V at a current of 5A.
The input voltage range for the 1011202CHCO is 85 to 264 VAC.
The 1011202CHCO has a power rating of 70W.
The operating temperature range is 0°C to 70°C (With Derating).
The 1011202CHCO is supplied in a Box package/case.
