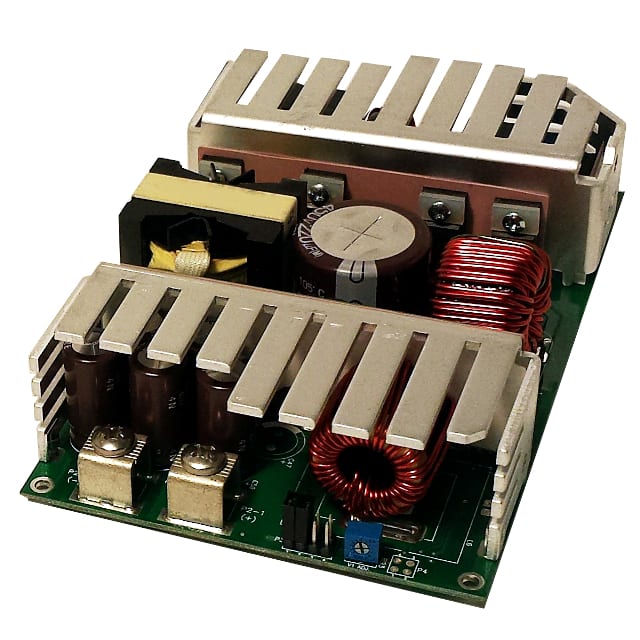

The Integrated Power Designs 1011022 is a 350W AC/DC converter designed for ITE (Commercial) and Medical applications. It features an open frame construction and chassis mounting for easy integration into systems.
Key electrical specifications include a universal input voltage range of 100 to 240 VAC and an output current of 23.3 A. The converter boasts an efficiency of 85% and operates within a temperature range of 0°C to 70°C with derating. Features such as adjustable output and remote sense enhance its versatility.
This AC/DC converter meets several industry standards, including 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA. Its dimensions are 152.4mm in length, 98.3mm in width, and 38.0mm in height.
The product is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
15V.
350W.
100 to 240 VAC.
85%.
0°C to 70°C with derating.
CE, cURus, TUV, UKCA.
Open frame chassis mount.
