| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

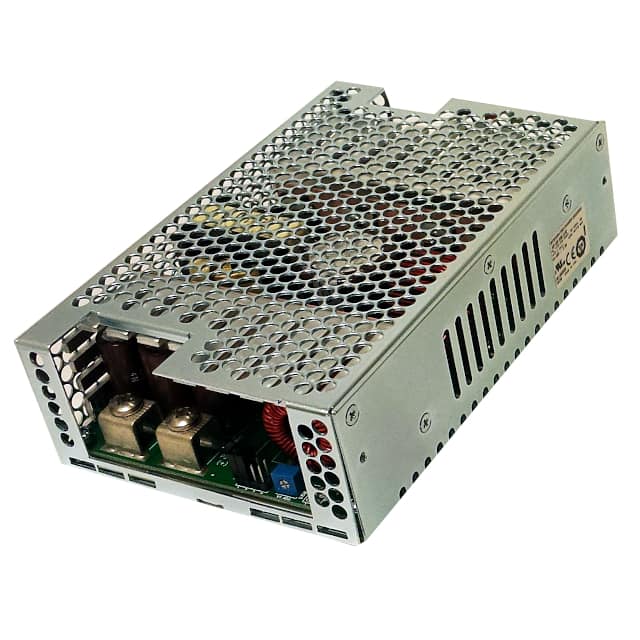

This AC/DC converter from Integrated Power Designs, part number 1011017CHCO, is an enclosed unit designed for chassis mounting. It operates with a universal input voltage range of 100 to 240 VAC and delivers 350W of power.
Key features include adjustable output and remote sense capabilities, making it suitable for ITE (Commercial) and Medical applications. The converter has an efficiency of 85% and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 157.5mm in length, 101.6mm in width, and 44.5mm in height.
Compliance is indicated by CE, cURus, TUV, and UKCA approvals, and it meets standards such as 60601-1 and 62368-1. The RoHS status is reported as RoHS3 Compliant, Moisture Sensitivity Level is 1, and REACH status is Unaffected.
The 1011017CHCO provides a single output of 48V at 7.3A.
The power rating is 350W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount mounting.
The dimensions are 157.5mm (length) x 101.6mm (width) x 44.5mm (height).
It complies with safety standards 60601-1 and 62368-1.
