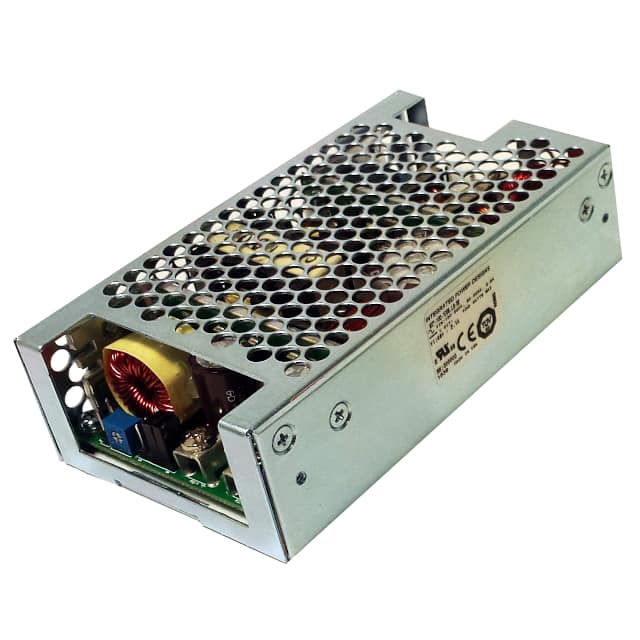

This enclosed AC DC converter from Integrated Power Designs, part number 1010994CHCO, offers a power output of 100W and a single output current of 8.3A. It operates with a universal input voltage range of 100 to 240 VAC, making it suitable for global applications.
Key features include adjustable output, remote sense, and universal input capabilities. The converter has an efficiency of 85% and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 122.2mm x 65.8mm x 33.0mm.
Designed for ITE (Commercial) and Medical applications, this converter meets standards such as 60601-1 and 62368-1. It is chassis mountable and features a RoHS3 compliant status.
The output power is 100W.
The input voltage range is 100 ~ 240 VAC.
The output current is 8.3 A.
The operating temperature range is 0°C to 70°C with derating.
It complies with standards 60601-1 and 62368-1.
It requires chassis mounting.
