| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

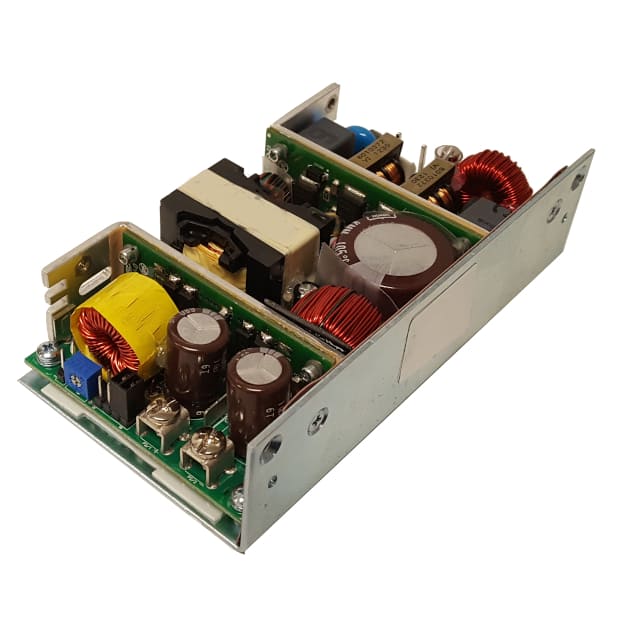

The Integrated Power Designs 1010992CH is a chassis-type AC/DC converter with a power rating of 100W. It features a universal input voltage range of 100 to 240 VAC and delivers a single output.
Key specifications include an output current of 20A and an efficiency of 85%. This converter is designed for chassis mounting and includes features such as adjustable output and remote sense. It operates within a temperature range of 0°C to 70°C with derating.
Approved by CE, cURus, TUV, and UKCA, this AC/DC converter meets stringent industry standards. It is suitable for applications in ITE (Commercial) and Medical sectors. The dimensions are 122.2mm x 65.8mm x 33.0mm.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status.
The power output is 100W.
The input voltage range is 100 to 240 VAC.
The output current rating is 20 A.
The operating temperature range is 0°C to 70°C, with derating.
It uses a chassis mount.
Key features include adjustable output, remote sense, and universal input.
It complies with standards 60601-1 and 62368-1.
