| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

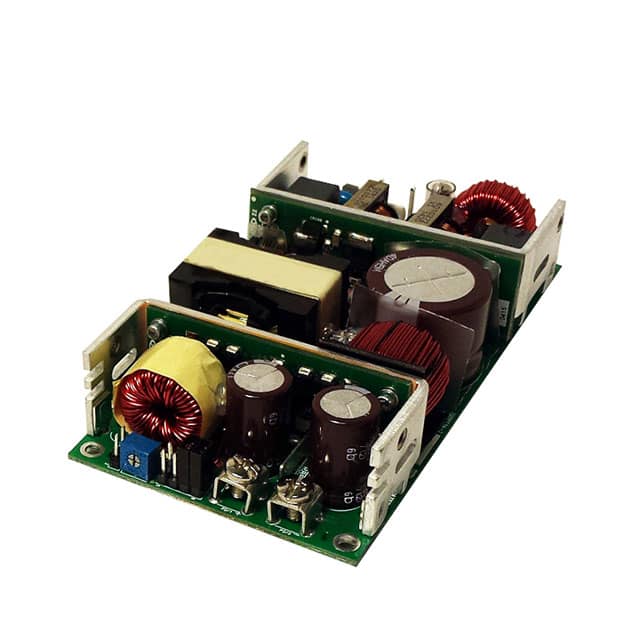

This AC/DC converter from Integrated Power Designs, part number 1010971, offers a power output of 100W and operates with a universal input voltage range of 100 to 240 VAC. It features an adjustable output and provides essential functions like remote sense and universal input capabilities.
The converter is designed in an open frame construction with a chassis mount type, making it suitable for integration into various systems. Its dimensions are 114.3mm in length, 63.5mm in width, and 25.4mm in height. The operating temperature range is from 0°C to 70°C, with derating applied.
Key specifications include an efficiency of 85% and compliance with safety standards such as 60601-1 and 62368-1. It is approved by agencies including CE, cURus, TUV, and UKCA, indicating its suitability for commercial and medical applications. The RoHS status is compliant with RoHS3, and it has a Moisture Sensitivity Level (MSL) of 1.
100 to 240 VAC.
0°C to 70°C with derating.
85%.
1 output.
60601-1 and 62368-1.
CE, cURus, TUV, UKCA.
Length 114.3mm (4.50"), width 63.5mm (2.50"), height 25.4mm (1.00").
