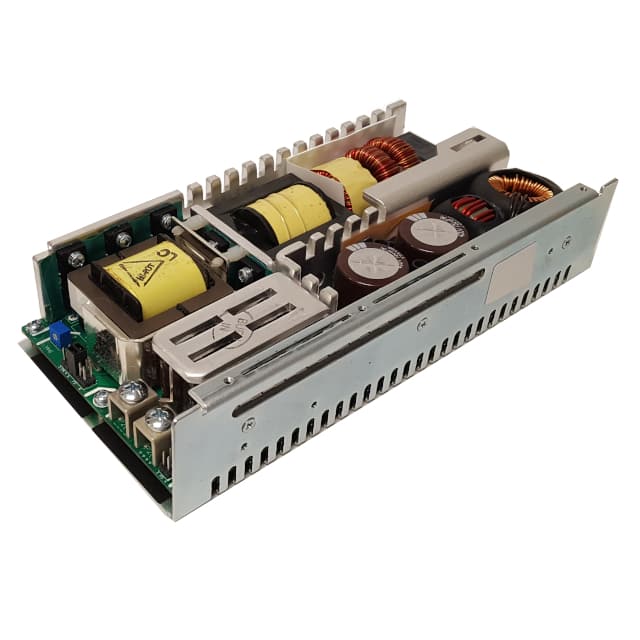

The Integrated Power Designs 1010944CHCO is an AC/DC converter designed for commercial and medical applications. It delivers a power output of 400W with a single 3.3V output voltage and a maximum current of 80A.
This converter operates with an input voltage range of 100 to 240 VAC and boasts an efficiency of 85%. Key features include adjustable output, remote sense, and universal input capabilities. The device is designed for chassis mounting and has dimensions of 210.4mm x 101.6mm x 45.7mm.
It meets safety standards including 60601-1 and 62368-1, and holds approvals from CE, cURus, TUV, and UKCA. The operating temperature range is 0°C to 70°C with derating. This series is part of the NXT-400 family.
The output voltage is 3.3V.
The maximum output current is 80A.
The power rating is 400W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 210.4mm x 101.6mm x 45.7mm.
It complies with 60601-1 and 62368-1 standards.
