| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

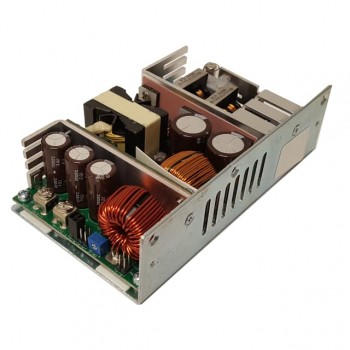

The Integrated Power Designs 1010917CH is an AC/DC converter designed for ITE (Commercial) and Medical applications. This chassis-mount unit delivers 175W of power with a single 48V output and a maximum current of 3.6A. It operates with a universal input voltage range of 100 to 240 VAC and boasts an efficiency of 85%.
Key features include adjustable output and remote sense capabilities, making it versatile for various system designs. The converter operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm).
This model is approved by CE, cURus, and TUV, adhering to standards such as 60601-1 and 62368-1. It is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 48V.
The maximum output current is 3.6A.
The power rating is 175W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 70°C with derating.
Key features include adjustable output, remote sense, and universal input.
It complies with standards 60601-1 and 62368-1.
