| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

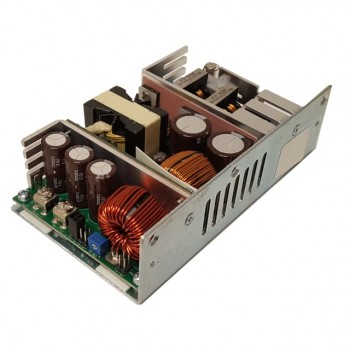

This Integrated Power Designs 1010915CH is an AC/DC converter with a power rating of 175W and a single output voltage of 24V. It accepts a universal input voltage range of 100 to 240 VAC.
The converter is designed for chassis mounting and features adjustable output and remote sense capabilities. Its efficiency is rated at 85%, and it operates within a temperature range of 0°C to 70°C with derating.
Applications for this converter include ITE (Commercial) and Medical sectors. It is approved by CE, cURus, TUV, and UKCA, meeting standards 60601-1 and 62368-1. The unit is RoHS3 Compliant and has an MSL rating of 1.
The input voltage range is 100 to 240 VAC.
The output voltage is 24V with a maximum output current of 7.3A.
The power rating is 175W.
The operating temperature range is 0°C to 70°C with derating.
The mounting type is chassis mount.
It complies with safety standards 60601-1 and 62368-1.
The dimensions are 133.1mm x 79.2mm x 38.9mm (5.24" x 3.12" x 1.53").
