| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

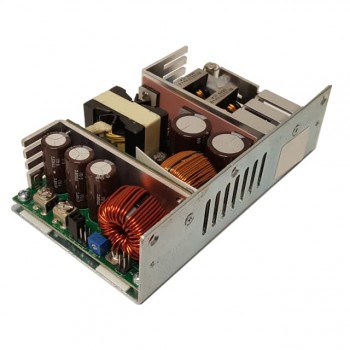

This AC/DC converter from Integrated Power Designs, part number 1010914CH, is rated for 175W of power and provides a 15V output voltage with a maximum current of 11.7A. It operates with an efficiency of 85% and accepts a universal input voltage range of 100 to 240 VAC.
The converter is designed for chassis mounting and features adjustable output, remote sense, and universal input capabilities. Its operating temperature range is 0°C to 70°C with derating. The dimensions are 133.1mm x 79.2mm x 38.9mm.
This unit is suitable for ITE (Commercial) and Medical applications. It carries approvals from CE, cURus, TUV, and UKCA, adhering to standards 60601-1 and 62368-1.
100-240 VAC.
15V at 11.7A.
175W.
0°C to 70°C with derating.
Chassis mount, packaged in a box.
CE, cURus, TUV, UKCA to standards 60601-1 (medical) and 62368-1 (ITE).
Adjustable output, remote sense, universal input.
