| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

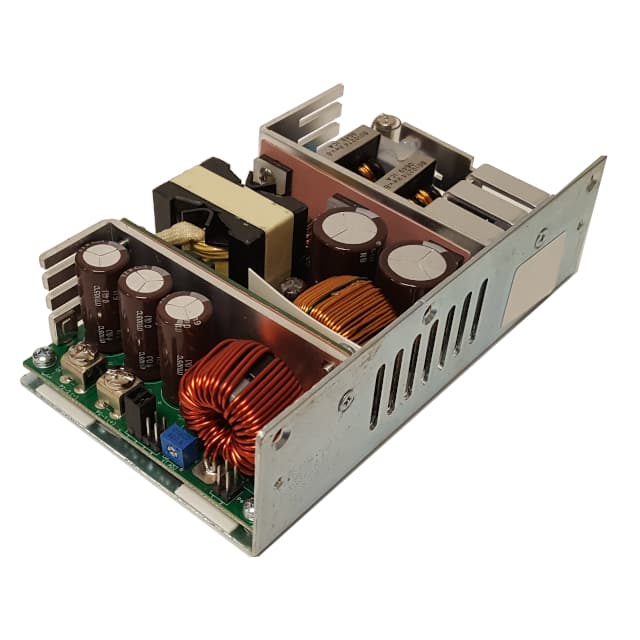

The Integrated Power Designs 1010897CH is a 175W AC/DC converter designed for ITE (Commercial) and Medical applications. It operates with a universal input voltage range of 100 to 240 VAC and provides a single 12V output at 14.6A.
Key features include adjustable output, remote sense, and an efficiency of 85%. The converter is housed in a chassis mount package with dimensions of 133.1mm x 79.2mm x 38.9mm. It operates within a temperature range of 0°C to 70°C with derating.
This model meets safety standards including 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA. It is RoHS3 compliant.
The 1010897CH provides a single 12V output.
The power rating of the 1010897CH is 175W.
The 1010897CH accepts an input voltage range of 100 to 240 VAC.
The operating temperature range is 0°C to 70°C, with derating.
The dimensions are 133.1mm x 79.2mm x 38.9mm.
It complies with standard numbers 60601-1 and 62368-1.
Approval agencies include CE, cURus, TUV, and UKCA.
