| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

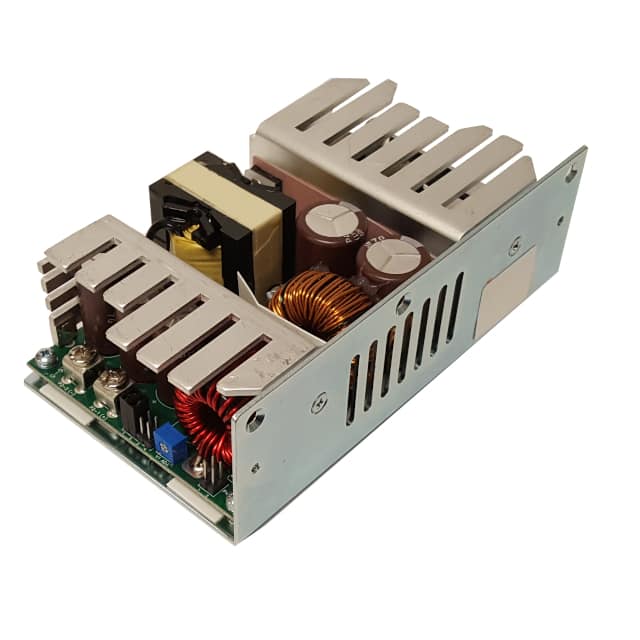

The Integrated Power Designs 1010891CH is a chassis-mount AC/DC converter designed for commercial ITE and medical applications. It delivers 225W of power with a single 24V output.
Key electrical specifications include a universal input voltage range of 100 to 240 VAC, an output current of 9.4A, and an efficiency of 85%. The unit offers adjustable output, remote sense, and operates within a temperature range of 0°C to 70°C with derating.
With dimensions of 133.1mm x 79.2mm x 44.5mm, this converter meets standards such as 60601-1 and 62368-1 and carries CE, cURus, TUV, and UKCA approvals. It is packaged in a box.
This model is suitable for applications requiring a reliable power supply with specific voltage and current requirements, offering flexibility through its adjustable output and remote sensing features.
100-240 VAC.
24VDC at 9.4A.
225W.
0°C to 70°C with derating.
Chassis mount.
60601-1 and 62368-1.
CE, cURus, TUV, UKCA.
