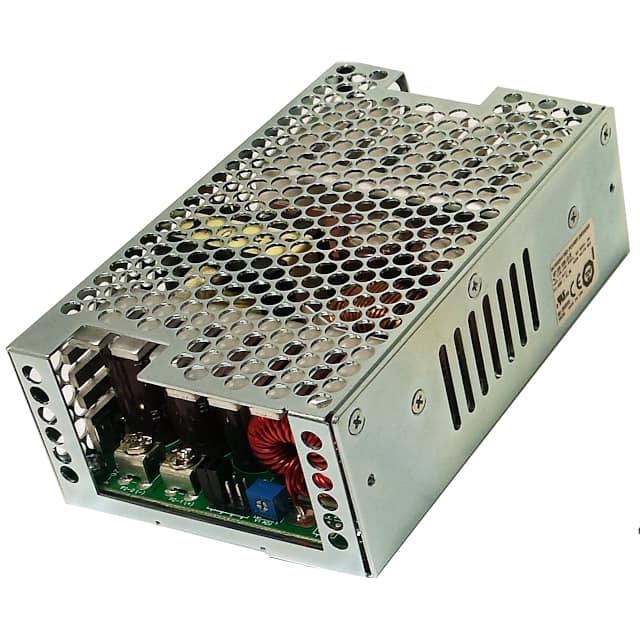

The Integrated Power Designs 1010887CHCO is an enclosed AC/DC power supply designed for ITE (Commercial) and Medical applications. It offers a power output of 225W and accepts a wide input voltage range of 100 to 240 VAC.
Key electrical specifications include an output current of 53A and an efficiency of 85%. This model features adjustable output, remote sense, and a universal input. It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C, with derating.
Compliance is indicated by CE, cURus, TUV, and UKCA certifications, and it meets standard numbers 60601-1 and 62368-1. The dimensions are 133.1mm x 79.2mm x 44.5mm. RoHS3 compliance is stated, with an MSL of 1 and REACH unaffected status.
The 1010887CHCO has a power output of 225W.
The input voltage range is 100 to 240 VAC.
The maximum output current is 53A.
It uses chassis mount.
The operating temperature is 0°C to 70°C, with derating.
It complies with CE, cURus, TUV, UKCA standards and meets 60601-1 and 62368-1.
