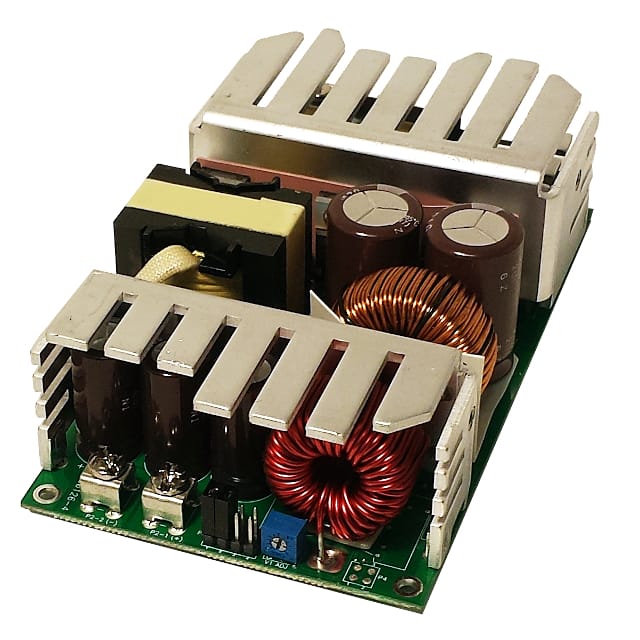

The Integrated Power Designs 1010881 is a versatile 225W AC/DC converter designed for ITE (Commercial) and Medical applications. This open frame unit features a chassis mount for easy integration into various systems.
Key electrical specifications include a universal input voltage range of 100 to 240 VAC, an efficiency of 85%, and a maximum output current of 18.8A. The converter operates within a temperature range of 0°C to 70°C with derating.
Designed for reliability and safety, the 1010881 meets standards such as 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA. Its features include adjustable output, remote sense capabilities, and a compact size of 127.0mm x 76.2mm x 38.0mm.
This AC/DC converter is suitable for applications requiring stable power conversion in commercial and medical equipment.
0°C to 70°C with derating.
100 to 240 VAC.
18.8A.
225W.
85%.
Chassis Mount.
CE, cURus, TUV, UKCA.
