| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

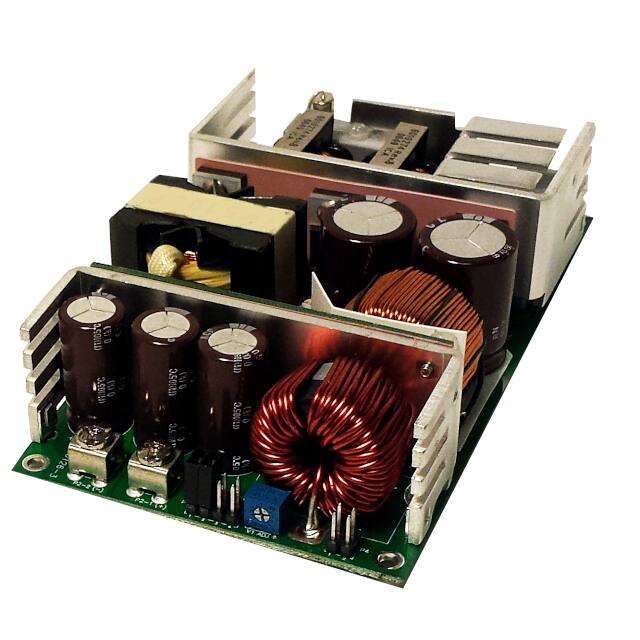

This AC/DC converter from Integrated Power Designs, part number 1010857, is designed for ITE (Commercial) and Medical applications. It operates with a universal input voltage range of 100 to 240 VAC and delivers 175W of power.
The converter features an open frame construction and is designed for chassis mounting. Key specifications include an efficiency of 85%, adjustable output, remote sense capabilities, and a single output.
Dimensions are 127.0mm x 76.2mm x 31.7mm (5.00" L x 3.00" W x 1.25" H). The operating temperature range is 0°C to 70°C with derating. It is compliant with standards such as 60601-1 and 62368-1 and carries approvals from CE, cURus, TUV, and UKCA.
48V.
3.6 A.
175W.
100 ~ 240 VAC.
0°C ~ 70°C (with derating).
Chassis Mount.
CE, cURus, TUV, UKCA.
