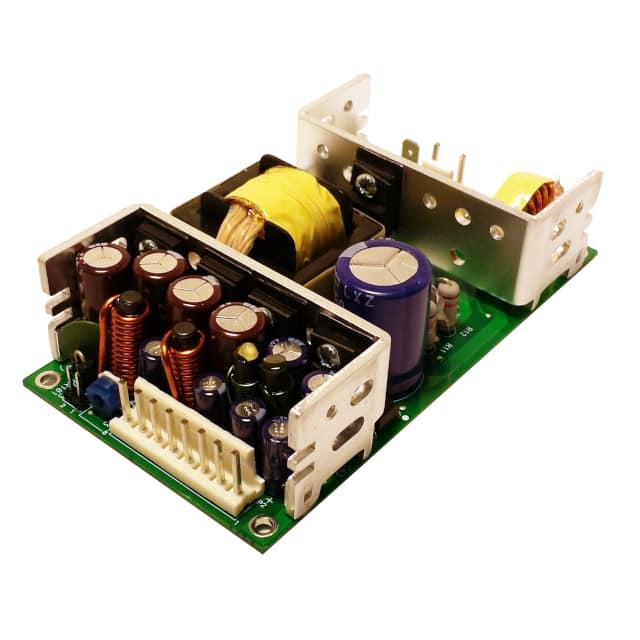

The Integrated Power Designs 1010805 is an open-frame DC/DC converter designed for commercial ITE and medical applications. This unit delivers a total power of 70W, featuring dual outputs of 5V and 12V. It operates with an input voltage range from 18V to 36V and boasts an efficiency of 78%.
The converter is designed for chassis mounting, making it suitable for integration into various systems. Its operating temperature range is from 0°C to 70°C, with derating applied. The dimensions are 114.3mm x 63.5mm x 31.0mm. It meets safety standards including 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA.
Compliance information indicates RoHS3 compliance and REACH unaffected status. The MSL is rated at 1 Unlimited. This DC/DC converter is a reliable component for power conversion needs in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Integrated Power Designs 1010805 provides 5V and 12V output voltages.
The 1010805 DC/DC converter has a maximum power output of 70W.
The input voltage range for the 1010805 is 18V to 36V.
The operating temperature range is 0°C to 70°C, with derating.
The 1010805 is designed for chassis mounting.
The dimensions are 114.3mm x 63.5mm x 31.0mm.
The 1010805 complies with 60601-1 and 62368-1 standards.
