1010774CHCO
Integrated Power Designs
The Integrated Power Designs 1010774CHCO is an enclosed DC DC converter with a 70W power output. It is designed for chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

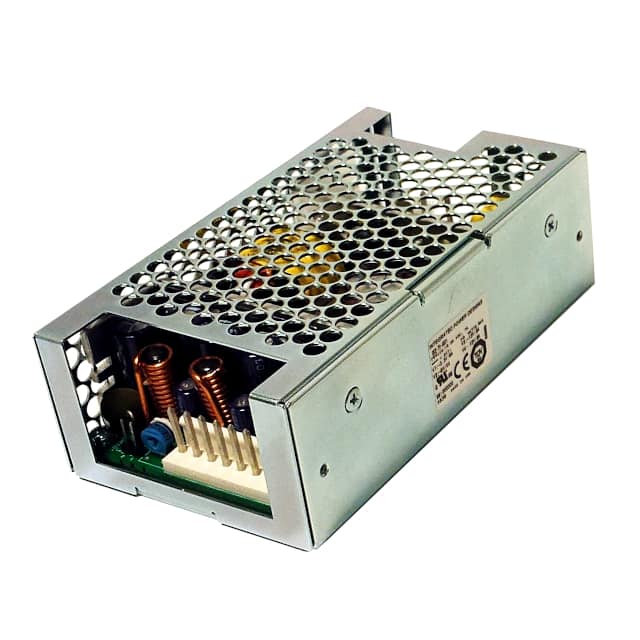

The Integrated Power Designs 1010795CHCO is an enclosed DC DC converter designed for ITE (Commercial) and Medical applications. It delivers 70W of power with an input voltage range of 18V to 36V and an efficiency of 78%.
This converter features four outputs, including 3.3V, 5V, and +/-12V, with maximum output currents of 6A, 5A, 2A, and 2A respectively. The operating temperature range is 0°C to 70°C with derating. Its dimensions are 121.6mm x 66.5mm x 37.6mm.
Compliance is met with standards such as 60601-1 and 62368-1, and it holds approvals from CE, cURus, TUV, and UKCA. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1010795CHCO is an External/Internal DC DC Converter from Integrated Power Designs.
The maximum input voltage for the 1010795CHCO is 36V.
The 1010795CHCO has a power rating of 70W.
The operating temperature range is 0°C to 70°C (With Derating).
The 1010795CHCO is supplied in a Box package.
