| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

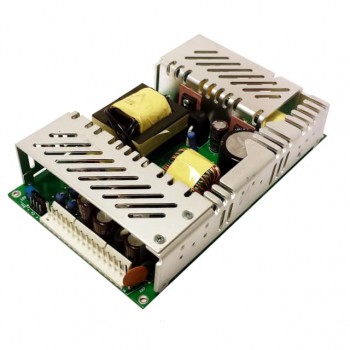

This Integrated Power Designs 1010759 is a robust DC/DC converter delivering 185W of power. It provides dual outputs of +15V and -15V, suitable for applications requiring bipolar voltage rails. The converter operates within an input voltage range of 18V to 36V and boasts an efficiency of 84%.
Designed with an open frame construction, this unit is intended for chassis mounting, facilitating integration into larger systems. Its dimensions are 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm). The operating temperature range is from 0°C to 70°C with derating.
Key certifications include CE, cURus, and TUV, with compliance to standards 60601-1 and 62368-1. The applications for this converter include ITE (Commercial) and Medical sectors, highlighting its versatility and reliability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Integrated Power Designs 1010759 provides outputs of +15V and -15V.
The input voltage range for this converter is 18V to 36V.
The 1010759 converter has a maximum power output of 185W.
The operating temperature range is 0°C to 70°C, with derating.
The 1010759 converter uses chassis mount.
The dimensions are 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm).
It complies with standards 60601-1 and 62368-1.
