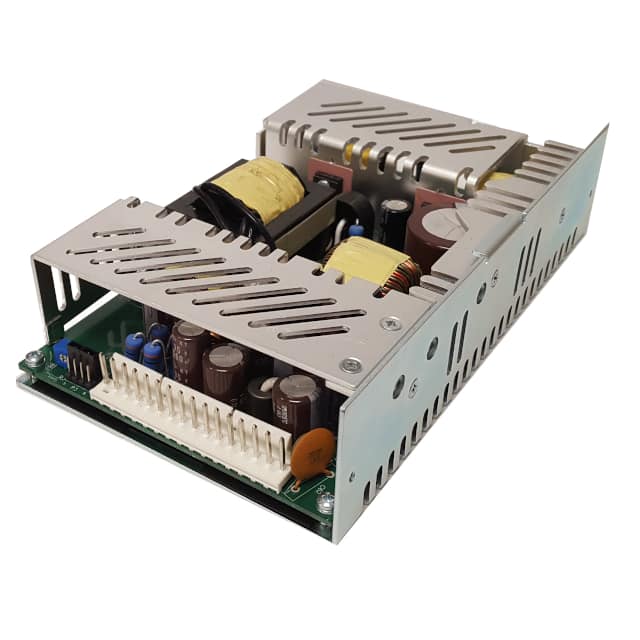

The Integrated Power Designs 1010727CH is a robust DC DC converter designed for demanding applications. It delivers a total power of 185W with multiple output voltages including 5V, 12V, and -12V. The converter operates with an efficiency of 84% and features an open frame construction suitable for chassis mounting.
With an input voltage range of 36V to 72V, this unit is well-suited for industrial and commercial (ITE) environments, as well as medical applications, adhering to standards like 60601-1 and 62368-1. The operating temperature range is from 0°C to 70°C with derating. Its dimensions are 183.6mm x 110.7mm x 44.2mm.
Key electrical specifications include output currents of 20A, 5A, and 3A across its multiple outputs. The series is designated as DC4-185, indicating its power rating. Compliance is certified by CE, cURus, TUV, and UKCA agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Integrated Power Designs 1010727CH offers output voltages of 5V, 12V, and -12V.
The input voltage range for the 1010727CH is from 36V to 72V.
The 1010727CH has a maximum power output of 185W.
The efficiency of the 1010727CH is 84%.
The dimensions of the 1010727CH are 183.6mm x 110.7mm x 44.2mm.
The operating temperature range for the 1010727CH is 0°C to 70°C with derating.
The 1010727CH is suitable for ITE (Commercial) and Medical applications.
