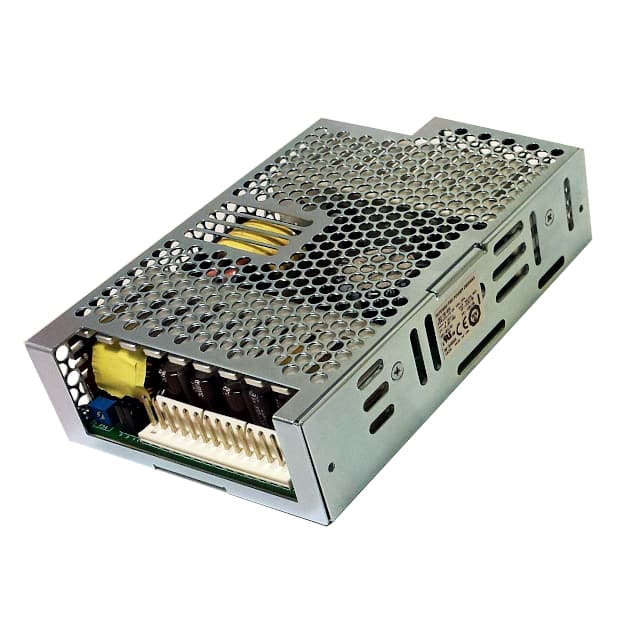

The Integrated Power Designs 1010689 is an enclosed DC DC converter with a power rating of 150W. It provides a single output voltage of 28V, accepting an input voltage range from 36V to 72V. The converter operates with an efficiency of 82% and delivers a maximum output current of 5.4A.
Designed for chassis mounting, this unit has dimensions of 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm). It is suitable for applications in ITE (Commercial) and Medical sectors, adhering to standards such as 60601-1 and 62368-1. The operating temperature range is 0°C to 70°C with derating.
This series, DC4-150 (150W), is built to meet demanding requirements in various electronic systems. Its robust construction and reliable performance make it a suitable choice for power conversion needs in commercial and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 28V.
The input voltage range is 36V to 72V.
The power rating is 150W.
The efficiency is 82%.
The dimensions are 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm).
The operating temperature range is 0°C to 70°C (With Derating).
It complies with standards 60601-1 and 62368-1.
