| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

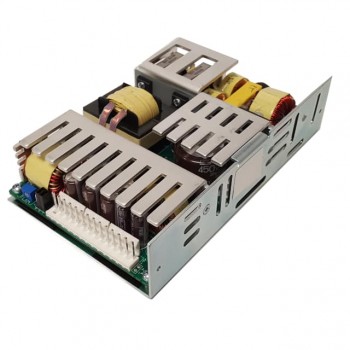

The Integrated Power Designs 1010685 is an open frame DC/DC converter designed for reliable power conversion. It operates with an input voltage range of 36V to 72V and provides a single 5V output with a maximum current of 30A, delivering up to 150W of power.
This converter is suitable for ITE (Commercial) and Medical applications. It features chassis mounting for easy integration into systems. The operating temperature range is 0°C to 70°C with derating. The dimensions are 152.4mm x 97.3mm x 33.5mm.
Compliance is indicated by CE, cURus, and TUV approvals, with standards including 60601-1 and 62368-1. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36V to 72V
5V
30A
82%
152.4mm in length, 97.3mm in width, 33.5mm in height
60601-1 and 62368-1
CE, cURus, TUV, UKCA
