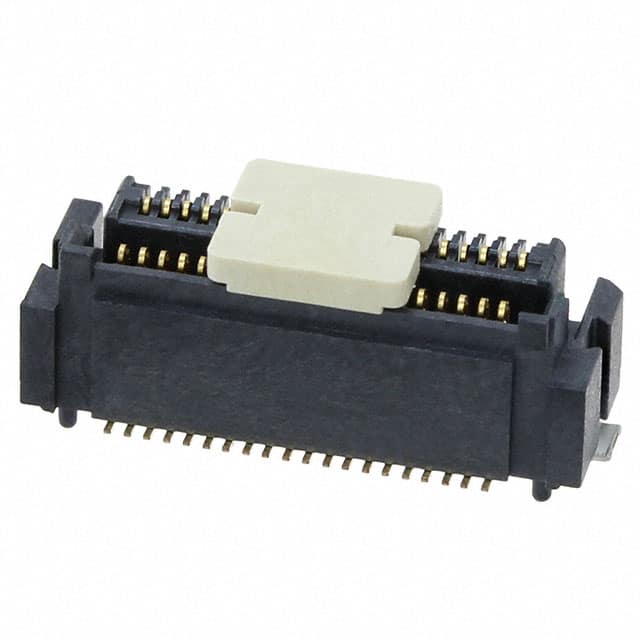

10106813-044112LF Self-mating, hermaphroditic connector with 40 positions in 2 rows at 0.50mm pitch. Surface mount with gold contacts and board guide features.
Mfr Part #:

10106813-044112LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Self-mating, hermaphroditic connector with 40 positions in 2 rows at 0.50mm pitch. Surface mount with gold contacts and board guide features.
✓ Total Stock: 2,810 pcs
$ Price Range: $2.24 - $3.73

10106813-044112LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,810 pcs
On Request
2810 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

10106813-044112LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

10106813-044112LF Description

Short technical summary and product information.

The Amphenol ICC 10106813-044112LF is a 40-position self-mating, hermaphroditic connector designed for mezzanine board-to-board applications.



It features 2 rows with a 0.50mm pitch, surface mount termination, and gold or gold GXT contact finish with 0.38µm thickness. The connector has a height above board of 5.05mm and supports mated stacking heights of 5.5mm, 6.5mm, and 7mm.



Additional features include board guide and solder retention for reliable assembly. This connector is suitable for compact electronic devices requiring high-density interconnects.

10106813-044112LF Quick Information

Product Type: Mezzanine Connector
Canonical Name: 40 Position Self-Mating Hermaphroditic Connector, 0.50mm Pitch, Surface Mount
Subcategory: Mezzanine Connector

10106813-044112LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

10106813-044112LF Estimated Pricing

Qty Low High
1+ $3.73 $3.73
10+ $3.18 $3.18
25+ $2.84 $2.84
100+ $2.70 $2.70
250+ $2.53 $2.53
500+ $2.42 $2.42
800+ $2.24 $2.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

10106813-044112LF Features

  • 40 positions in 2 rows at 0.50mm pitch.
  • Self-mating hermaphroditic design for flexible usage.
  • Surface mount with gold contact finish.
  • Board guide and solder retention features.
  • Supports stacking heights from 5.5mm to 7mm.

10106813-044112LF Applications

  • Ideal for mezzanine board-to-board connections.
  • Suitable for high-density electronic assemblies.
  • Used in compact consumer electronics and industrial devices.
  • Perfect for applications requiring self-mating connectors.

10106813-044112LF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the connector have?

40 positions.

What is the pitch of this connector?

0.50mm.

What is the mounting type?

Surface Mount.

What is the contact finish?

Gold or Gold, GXT™ with 0.38µm thickness.

What stacking heights does this connector support?

5.5mm, 6.5mm, and 7mm.

Is this connector RoHS compliant?

RoHS3 compliant (unverified).

Does it have board guide and solder retention?

Yes, includes board guide and solder retention features.
