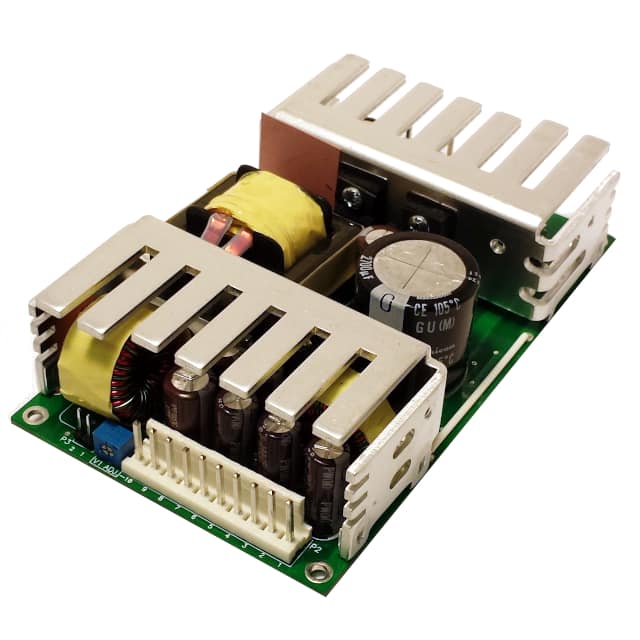

The Integrated Power Designs 1010629 is an open frame DC DC converter with a power rating of 105W. It provides dual outputs of +/-15V, each capable of delivering up to 4A and 3A respectively. The converter operates with an efficiency of 82% and features a chassis mount design for easy integration into systems.
This DC DC converter is suitable for ITE (Commercial) and Medical applications, adhering to standards such as 60601-1 and 62368-1. It operates within a temperature range of 0°C to 70°C with derating. The dimensions are 127.0mm in length, 76.2mm in width, and 33.5mm in height.
Compliance includes RoHS3, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Approval agencies include CE, cURus, TUV, and UKCA, indicating its suitability for various international markets.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1010629 DC DC Converter provides +/-15V output.
The 1010629 DC DC Converter has a power rating of 105W.
The 1010629 DC DC Converter features a Chassis Mount mounting type.
The operating temperature range for the 1010629 DC DC Converter is 0°C to 70°C with derating.
The 1010629 DC DC Converter is suitable for ITE (Commercial) and Medical applications.
The 1010629 DC DC Converter has an efficiency of 82%.
The 1010629 DC DC Converter is RoHS3 Compliant.
