| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

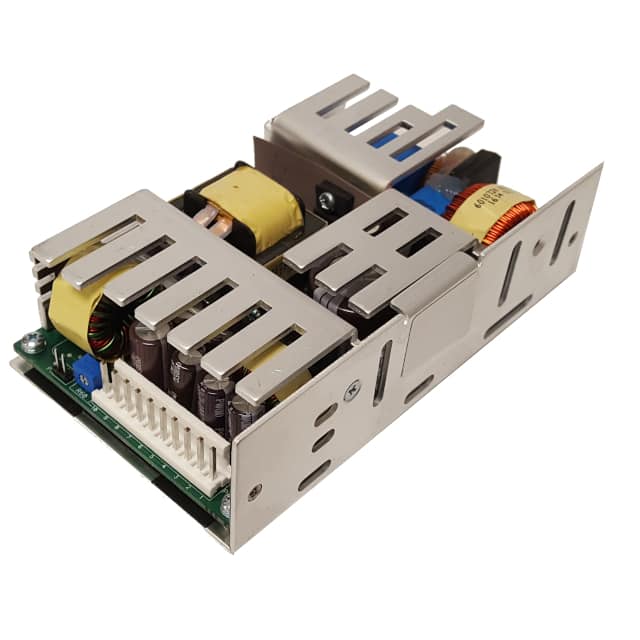

This DC DC converter from Integrated Power Designs, model 1010617CH, is designed for ITE (Commercial) and Medical applications. It operates with an input voltage range of 18V to 36V and delivers a maximum output current of 22A, providing a total power of 55W.
The unit boasts an efficiency of 82% and has a single output. It is designed for chassis mounting and operates within a temperature range of 0°C to 70°C with derating. The dimensions are 133.4mm in length, 79.2mm in width, and 37.6mm in height.
Compliance standards include 60601-1 and 62368-1, with approvals from CE, cURus, TUV, and UKCA. The product is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 36V.
The maximum output current is 22A.
The power rating is 55W.
The efficiency is 82%.
The operating temperature range is 0°C to 70°C with derating.
The mounting type is Chassis Mount.
The 1010617CH is supplied in a Box package/case.
