| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

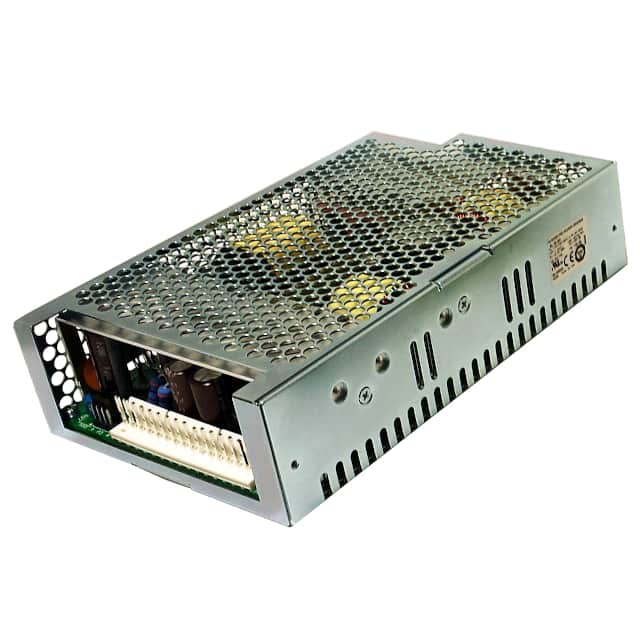

The Integrated Power Designs 1010577CHCO is a versatile AC/DC converter designed for various applications including industrial, ITE (Commercial), laboratory, and medical settings. This enclosed unit provides a single 12V output with a maximum current of 15.4A, delivering a total power of 185W.
Featuring a universal input voltage range of 85-264 VAC, this converter ensures compatibility across different power grids. Its design includes adjustable output, remote sense capabilities, and an efficiency rating of 82%. The operating temperature range is from 0°C to 70°C with derating.
For mechanical integration, the 1010577CHCO is chassis mounted and has dimensions of 156.8mm x 100.5mm x 37.6mm. It meets safety standards including 60601-1 and 62368-1, and holds agency approvals from CE, cURus, TUV, and UKCA. The series is designated as REL-185.
The input voltage range is 85 ~ 264 VAC.
The output voltage is 12V with a maximum current of 15.4A.
The power rating is 185W.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount mounting.
It complies with standards 60601-1 (medical) and 62368-1 (ITE/audio/video).
The dimensions are 156.8mm x 100.5mm x 37.6mm (6.25" L x 3.96" W x 1.48" H).
