| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

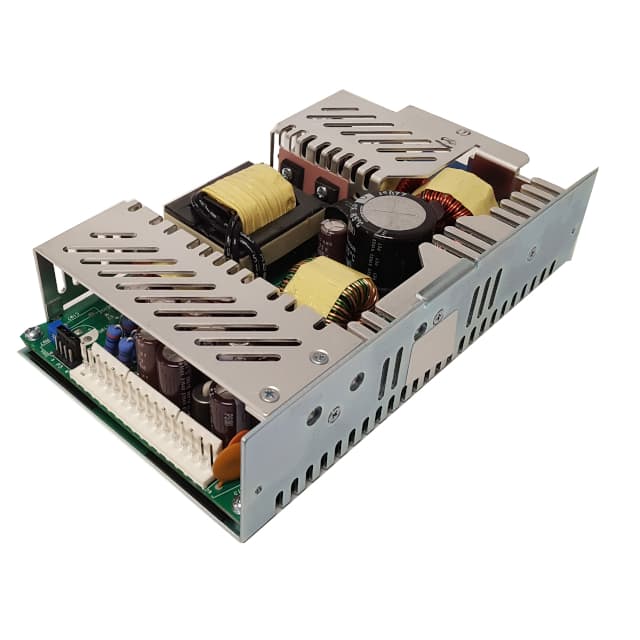

The Integrated Power Designs 1010574CH is a chassis-mount AC/DC converter designed for demanding applications. It offers a robust power output of 185W and accepts a wide input voltage range of 85 to 264 VAC, making it suitable for global use.
This converter features an efficiency of 82% and includes essential features such as adjustable output, remote sense, and universal input. Its applications span across industrial, ITE (Commercial), laboratory, and medical sectors. The unit is approved by CE, cURus, TUV, and UKCA, ensuring compliance with various safety standards.
With dimensions of 183.6mm x 110.7mm x 44.2mm, it provides a compact solution for power conversion needs. The operating temperature range is from 0°C to 70°C, with derating applied. It is designed with a single output and adheres to standard numbers 60601-1 and 62368-1.
The converter provides a single 2.5V output.
The output current is 37A.
The maximum power output is 185W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
