| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

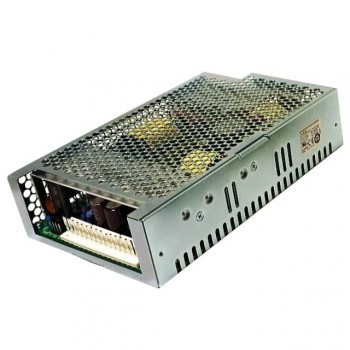

This AC/DC converter from Integrated Power Designs, model 1010561CHCO, is designed for versatile applications including industrial, ITE (Commercial), laboratory, and medical environments. It provides a total power output of 185W with multiple voltage outputs: 5V, 3.3V, +12V, and -12V. The unit operates with a universal input voltage range of 85 to 264 VAC, ensuring broad compatibility.
Key features include adjustable output, remote sense, and a universal input capability. The converter boasts an efficiency of 82% and operates within a temperature range of 0°C to 70°C with derating. Its enclosed package type and chassis mount facilitate integration into various systems.
The dimensions of the 1010561CHCO are 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm). It is approved by CE, cURus, and TUV, and complies with standards 60601-1 and 62368-1.
85-264 VAC.
Chassis Mount.
0°C to 70°C with derating.
5V at 20A, 3.3V at 10A, and ±12V at 2A.
82%.
60601-1 (medical) and 62368-1 (ITE).
156.8mm x 100.5mm x 37.6mm.
