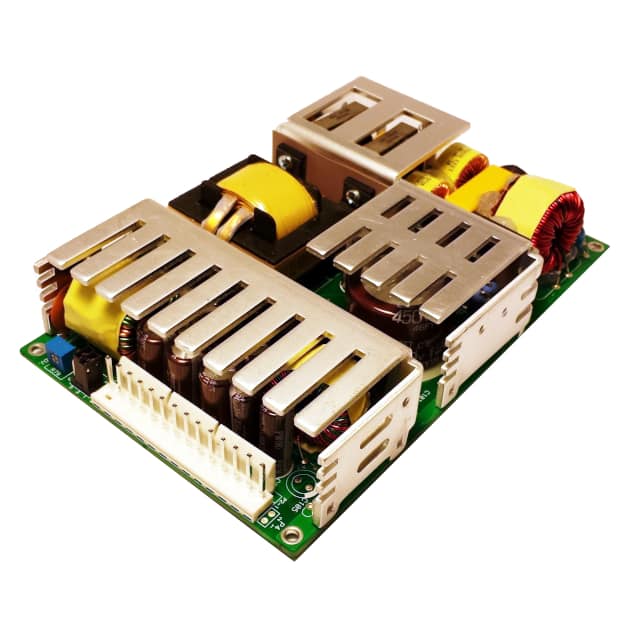

The Integrated Power Designs 1010521 is an open-frame AC/DC converter designed for versatile power supply applications. It features a chassis mount for easy integration into systems and operates with a wide input voltage range of 85 to 264 VAC, supporting universal input.
This converter delivers 150W of power with an output current of 5.4A. Key features include adjustable output and remote sense capabilities, enhancing its flexibility for various design requirements. The operating temperature range is from 0°C to 70°C, with derating applied at higher temperatures.
Approved by agencies such as CE, cURus, TUV, and UKCA, the 1010521 meets stringent safety and performance standards. Its applications span across industrial, ITE (Commercial), laboratory, and medical sectors, making it a robust choice for demanding environments. The dimensions are 152.4mm x 97.3mm x 33.5mm.
0°C to 70°C with derating.
85 to 264 VAC.
82%.
CE, cURus, TUV, UKCA.
152.4mm x 97.3mm x 33.5mm (6.00" x 3.83" x 1.32").
5.4 A.
Industrial, ITE (Commercial), Laboratory, Medical.
