| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

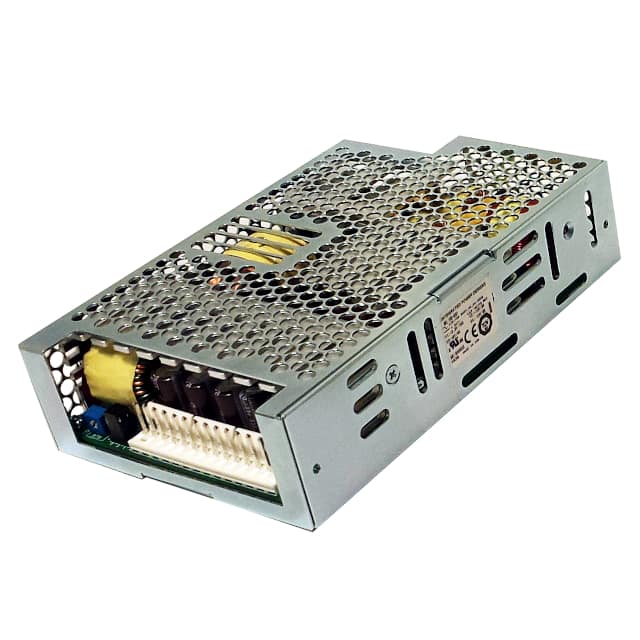

The Integrated Power Designs 1010520CHCO is an enclosed AC DC converter designed for industrial, ITE commercial, laboratory, and medical applications. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 24VDC output at 6.3A, delivering a total of 150W. The converter boasts an efficiency of 82% and includes features such as adjustable output and remote sense.
This unit is designed for chassis mounting and has dimensions of 156.8mm in length, 100.5mm in width, and 37.6mm in height. It meets safety standards including 60601-1 and 62368-1, with approvals from CE, cURus, TUV, and UKCA. The operating temperature range is from 0°C to 70°C with derating.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1 (Unlimited), and REACH unaffected status. The part number for this item is 1010520CHCO.
The input voltage range is 85 to 264 VAC.
The output voltage is 24VDC and the output current is 6.3A.
The power rating is 150W.
The operating temperature range is 0°C to 70°C (With Derating).
The dimensions are 156.8mm (L) x 100.5mm (W) x 37.6mm (H).
