| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

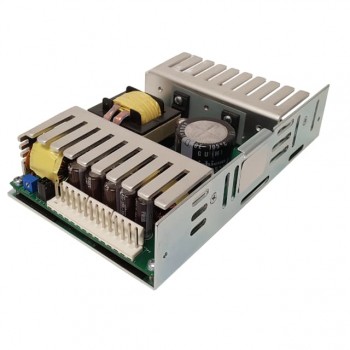

The Integrated Power Designs 1010511CH is a 150W AC/DC converter designed for versatile applications. It provides dual outputs of 5V and 12V, with maximum currents of 15A and 5A respectively. The converter operates with a universal input voltage range of 85 to 264 VAC.
Key features include adjustable output, remote sense, and universal input capabilities, making it suitable for industrial, ITE (Commercial), laboratory, and medical environments. The unit has an efficiency of 82% and operates within a temperature range of 0°C to 70°C with derating.
This converter is housed in a box package and designed for chassis mounting. Its dimensions are 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm). It is approved by CE, cURus, and TUV, and complies with standards 60601-1 and 62368-1.
The 1010511CH provides a 5V output and a 12V output.
The 1010511CH has a maximum power rating of 150W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 156.8mm x 100.5mm x 37.6mm.
It complies with standards 60601-1 and 62368-1.
