| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

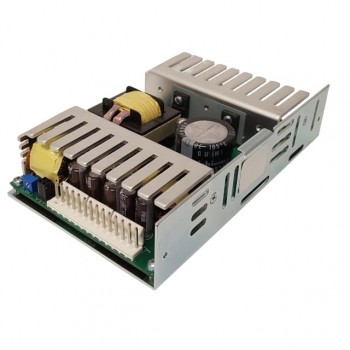

The Integrated Power Designs 1010508CH is a versatile AC/DC converter designed for demanding applications. It delivers a total power of 150W with multiple output voltages including 5V, 12V, and -12V, and corresponding maximum currents of 15A, 4A, and 3A respectively.
This converter boasts an efficiency of 82% and accepts a wide input voltage range of 85 to 264 VAC, making it suitable for global use. Its features include adjustable output, remote sense, and universal input capabilities. The operating temperature range is from 0°C to 70°C with derating.
Designed for robustness, the 1010508CH is housed in a chassis mount package with dimensions of 6.25" L x 3.96" W x 1.48" H. It holds approvals from CE, cURus, and TUV, and complies with standards such as 60601-1 and 62368-1. Its applications span industrial, ITE (Commercial), laboratory, and medical sectors.
85 to 264 VAC.
5V at 15A, 12V at 4A, and -12V at 3A.
0°C to 70°C with derating.
Chassis mount.
82%.
60601-1 and 62368-1.
Adjustable output and remote sense.
