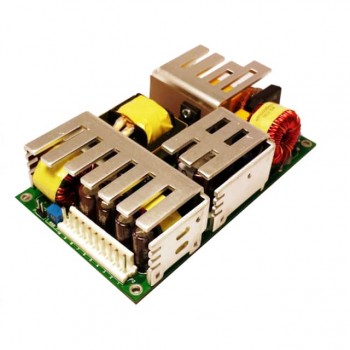

The Integrated Power Designs 1010476 is an open-frame AC/DC converter designed for industrial, ITE, laboratory, and medical applications. It provides a total power output of 110W across four outputs: 5V, 24V, 12V, and -12V.
This converter operates with an input voltage range of 85 to 264 VAC and boasts an efficiency of 82%. Key features include adjustable output and universal input capabilities, making it versatile for various power needs. The operating temperature range is 0°C to 70°C with derating.
With dimensions of 127.0mm x 76.2mm x 33.5mm, it is designed for chassis mounting. The unit is approved by CE, cURus, TUV, and UKCA, and complies with standards 60601-1 and 62368-1. It is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The Integrated Power Designs 1010476 offers outputs of 5V, 24V, 12V, and -12V.
The 1010476 AC/DC converter has a maximum power output of 110W.
The input voltage range for the 1010476 is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
Key features include adjustable output and universal input.
The 1010476 complies with standards 60601-1 and 62368-1.
The RoHS status is RoHS3 Compliant.
